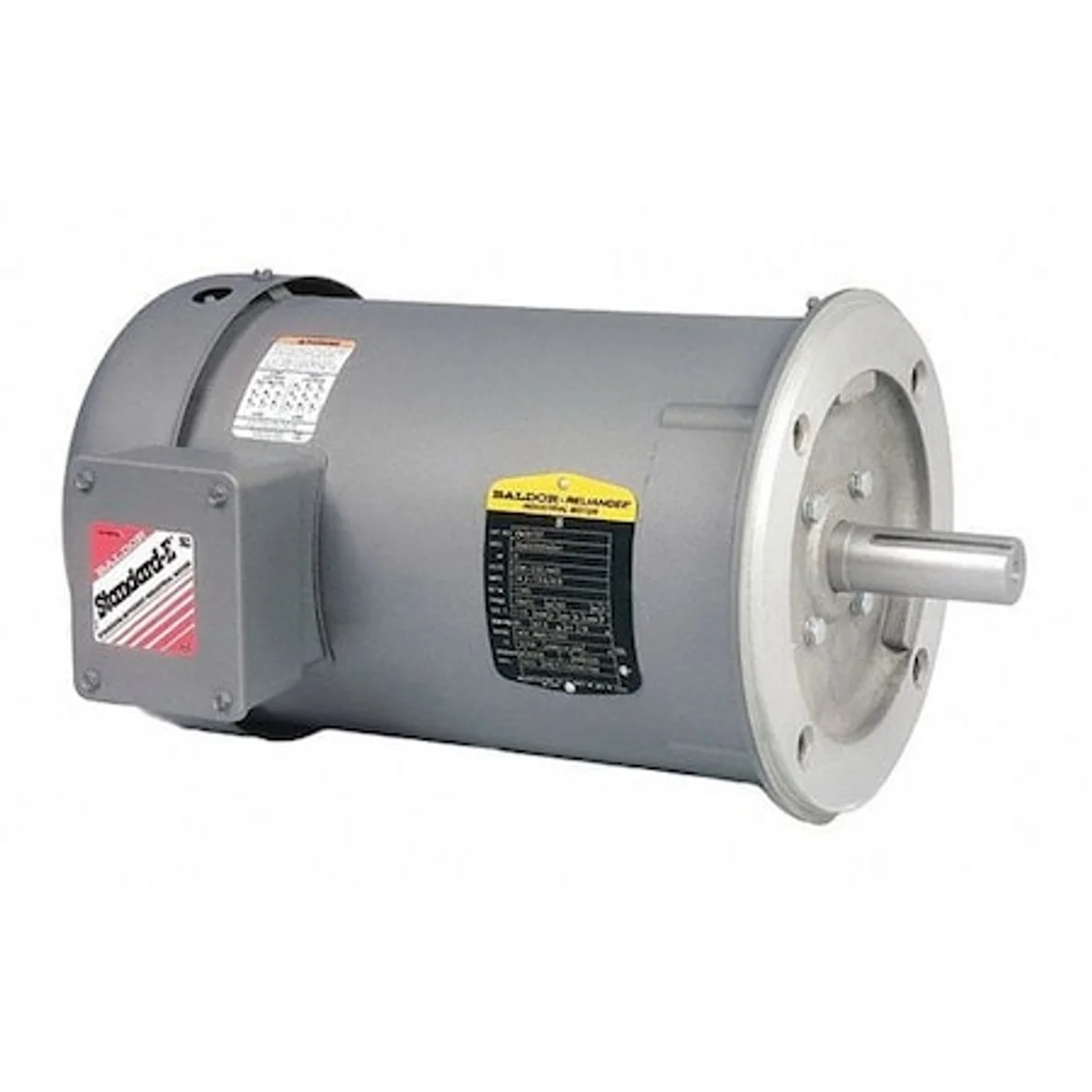

.5HP Motor, 1725RPM, 3PH, 60HZ, 56C, TEFC for Misc. Table Saw, Other, (VM3538)
Model(s): Misc.
Availability: Available
Factory direct order.
Ships within 5-7 days.
Mfr. Part Number:
VM3538
Alt. Part Number:
VM3538
Alt. Reference:
VM3538
Lead Time:
See details above
Elevate the reliability of your woodworking machinery with this high-performance AC Induction Motor. Engineered with a robust 1/2 HP and a sturdy 56C Frame, this motor supports flexible voltage configurations including 208V AC, 230V AC, and 460V AC. As a precision-engineered replacement part from (VM3538), it guarantees seamless fitment and consistent, long-lasting operational excellence for your critical equipment.
Technical Data
Shaft Length Excluding Shaft
9 1/2 in
Overall Measurement
11 3/8 in
Shaft Diameter Specification
5/8 in
Length of Shaft Only
1 7/8 in
Product Information
Model
AC Induction Motor
Horsepower Rating
1/2 HP
Rated Speed
1,720 RPM
Voltage Ratings
208V AC, 230V AC, 460V AC
Mounting Type
C-Face
Full Load Current Ratings
0.80/1.6/1.7 A
Frame Size Designation
56C
Type of Bearings
Ball
Service Factor Value
1.25
Motor Configuration
Three-Phase
Enclosure Style
Totally Enclosed Fan Cooled
RPM Range Specification
1,701-1,800
Phase Count
Three
Speed Variations
1
Application Category
General Purpose
Shaft Rotation Direction
CW/CCW
Voltage Compatibility Range
200-230/460V AC, 208-230/460V AC, 460V AC
Frequency Specification
60 Hz
Insulation Class Type
B
Maximum Ambient Temperature Limit
40 Degrees C
Frame Material Composition
Steel
Mounting Orientation
Vertical
Shaft Design Specification
Standard
Nominal Efficiency Rating
75.5 %
Compliance Standards
CSA, RoHS Compliant, UR
CC Reference Number
CC031A
NEMA Designation
B
Thermal Protection Status
None
Inverter Compatibility Status
No
Part Winding Start Capability Status
No
Duty Cycle Classification
Continuous
