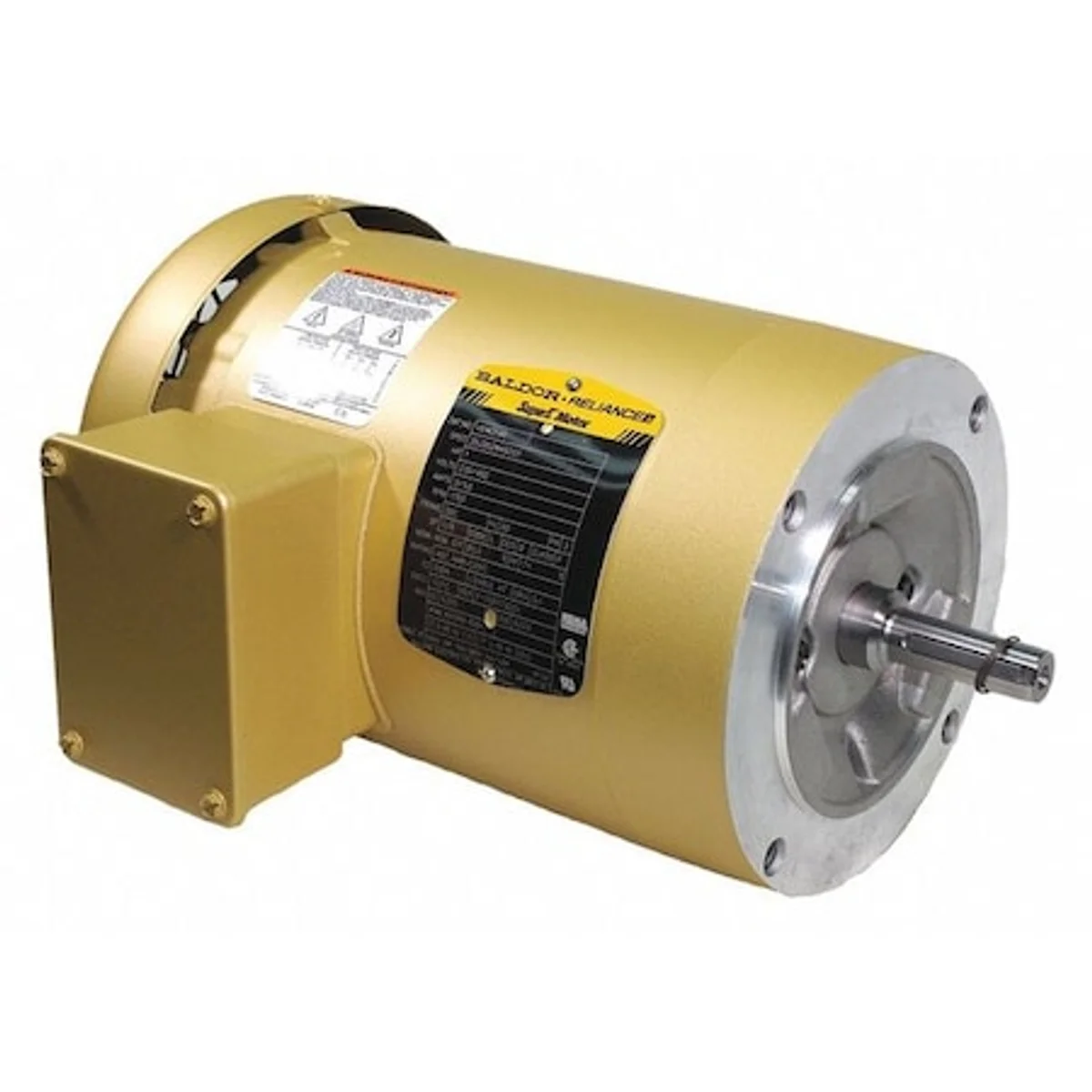

Baldor 3-Phase General Purpose Motor, 1HP, 56C Frame, 208/230/460V AC Voltage, 1760 rpm for Misc. Table Saw, Other, (VEM3546)
Model(s): Misc.
Availability: Available
Factory direct order.
Ships within 5-7 days.
Mfr. Part Number:
VEM3546
Alt. Part Number:
VEM3546
Alt. Reference:
VEM3546
Lead Time:
See details above
Optimize your machine with this Baldor-Reliance Three-Phase General Purpose Motor, 1 HP, 56C Frame, 208-230/460V AC Voltage, 1760 rpm . This quality replacement part (VEM3546) is designed for precise fitment and reliable performance.
Key Features
Nameplate RPM
1760 rpm
Voltage
208-230/460V AC
Motor Mounting Type
C-Face
Full Load Amps
3/1.5 A
Frame
56C
Dimensions
Length Less Shaft
10 3/8 in
Overall Length
12 1/4 in
Shaft Dia.
5/8 in
Shaft Length
1 7/8 in
Manufacturers Warranty Length
3 yr
Item
General Purpose Motor
HP
1
Nameplate RPM
1760 rpm
Voltage
208-230/460V AC
Motor Mounting Type
C-Face
Full Load Amps
3/1.5 A
Frame
56C
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
1701-1800
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-230/460V AC, 460V AC
Hz
60 Hz
