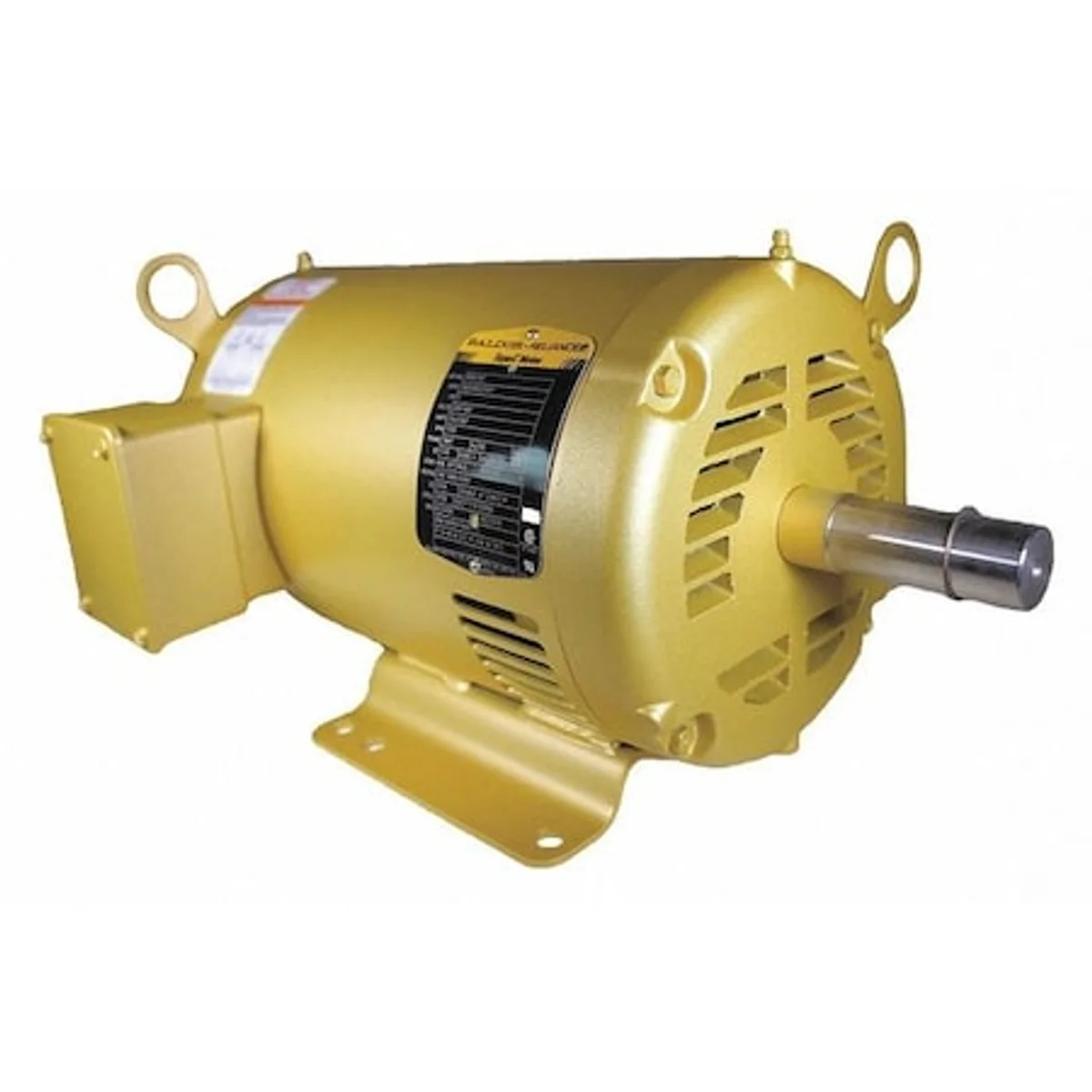

Baldor 3-Phase General Purpose Motor, 5HP, 184T Frame, 208/230/460V AC Voltage, 1750 RPM for Misc. Table Saw, Other, (EM3218T)
Model(s): Misc.
Availability: Available
Factory direct order.
Ships within 5-7 days.
Mfr. Part Number:
EM3218T
Alt. Part Number:
EM3218T
Alt. Reference:
EM3218T
Lead Time:
See details above
Optimize your machine with this 3-Phase General Purpose Motor, 5 HP, 184T Frame, 208-230/460V AC Voltage, 1,750 Nameplate RPM. This quality replacement part (EM3218T) is designed for precise fitment and reliable performance.
Key Features
HP
5
Nameplate RPM
1750 rpm
Voltage
208-230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
13.2/6.6 A
Item
General Purpose Motor
HP
5
Nameplate RPM
1750 rpm
Voltage
208-230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
13.2/6.6 A
Frame
184T
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Open Drip Proof
RPM Range
1701-1800
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-230/460V AC, 460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
All Angle
