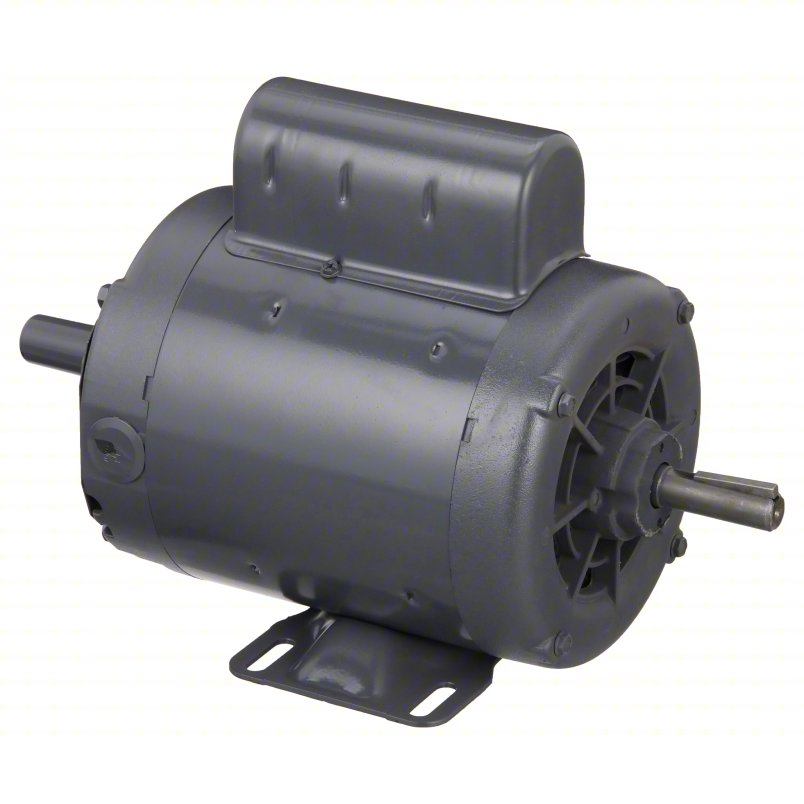

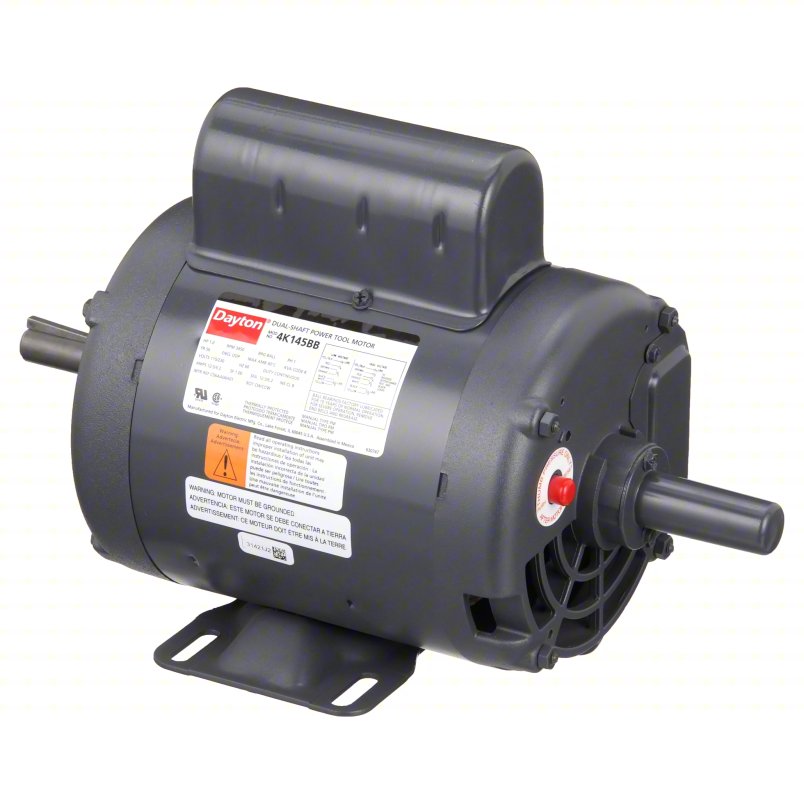

DAYTON Power Tool Motor, 2-Shaft, 1 HP, 3450rpm, 115/230V, (4K145BB)
Model(s): 4K145BB
Availability: Available to order
Factory direct order. Free 3-5 day
Ships within 3-5 days.
Mfr. Part Number:
4K145BB
Lead Time:
See details above
Details
| Shaft Dia. | 5/8 in |
| Shaft Length | 1 7/8 in |
| Length Less Shaft | 8 15/16 in |
| Overall Length | 13 3/8 in |
| Item | Power Tool Motor |
| Motor Design | Capacitor-Start |
| Motor Enclosure Design | Open Drip Proof |
| HP | 1 hp |
| Nameplate RPM | 3,450 RPM |
| Frame | 56 |
| Voltage | 115/230V AC |
| Full Load Amps | 12.6/6.3 A |
| Motor Mounting Type | Rigid Base |
| RPM Range | 3,001-3,600 |
| Motor Shaft Rotation | CW/CCW |
| Phase | Single |
| Motor Service Factor | 1 |
| Ambient Temperature | 40 Degrees C |
| Motor Application | Power Tools |
| Voltage Compatibility | 115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC |
| Standards | CSA Certified (701887), UL Component Recognized (E47479) |
| Hz | 60 Hz |
| Ins. Class | A |
| Motor Thermal Protection | Manual |
| Motor Bearings | Ball |
| No. of Speeds | 1 |
| Motor Shaft Design | Keyed |
| Usable @ 200V | Not Usable at 200V |
| Usable @ 208V | Not Usable at 208V |
| Max. Ambient Temp. | 40 Degrees C |
| Duty Cycle | Continuous |
| Motor Mounting Position | Horizontal |
| On/Off Switch | On/Off Switch Not Included |
| Motor Frame Material | Steel |
| Number of Shafts | 2 |
Description
Power Tool Motor, Single Phase, Motor Design Capacitor-Start, 1 hp HP, Nameplate RPM 3,450 RPM, No. of Speeds 1, 115/230V AC Voltage, Full Load Amps 12.6/6.3 A, 56 Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Manual, Ins. Class A, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Rigid Base
In woodworking and metalworking, AC motors are crucial for powering various stationary tools. They can be classified into split-phase and capacitor-start motors. Split-phase motors are single-phase and provide a moderate level of starting torque, whereas capacitor-start motors employ a capacitor to enhance startup power, yielding greater torque than their split-phase counterparts. These AC motors are commonly found in equipment such as lathes, planers, table saws, sanders, and grinders.
