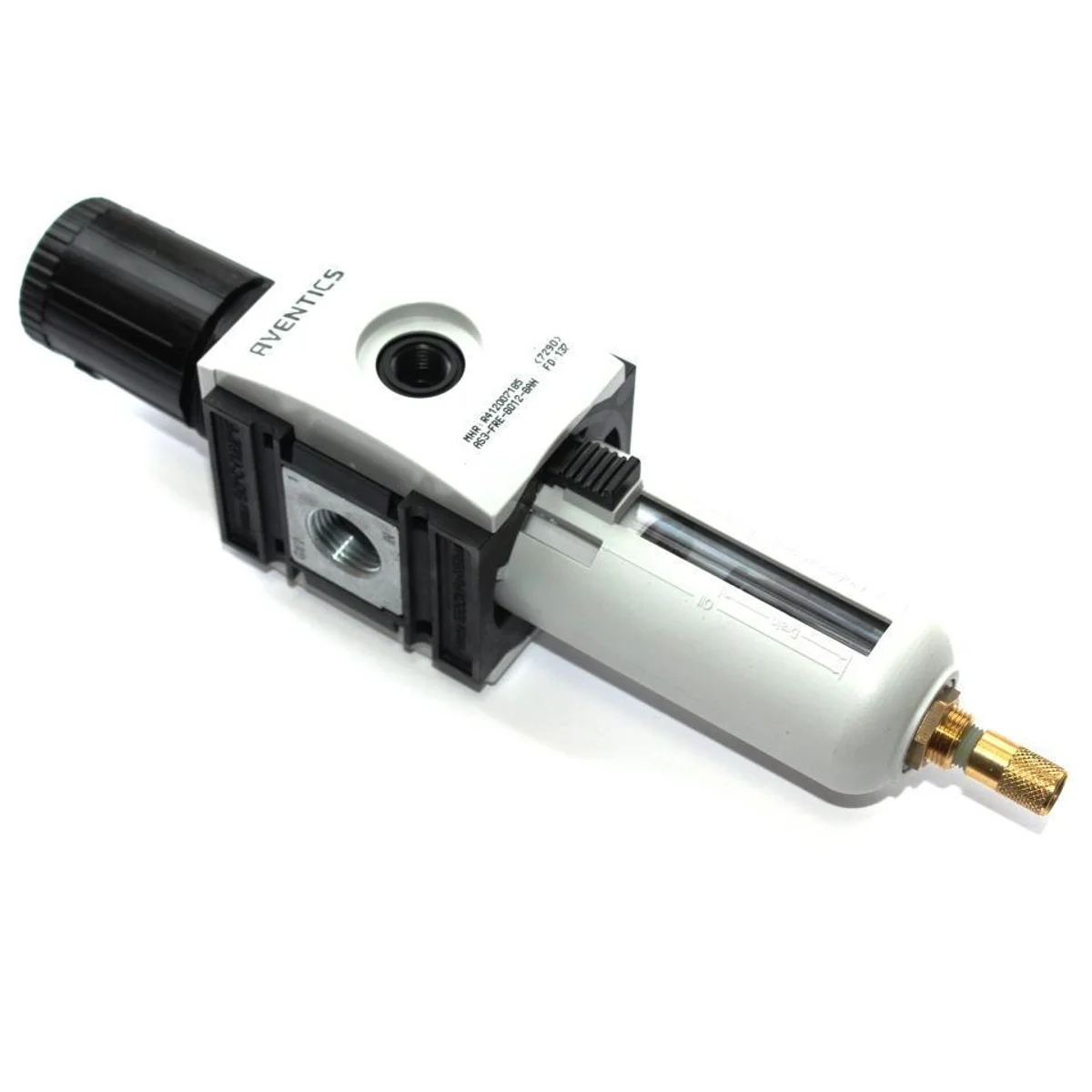

    Homag, Pressure Regulator with Filter G1-2, AS3-FRE Aventics, (4-011-04-1204)

    https://www.woodmachineryparts.com/web/image/product.template/2900/image_1920?unique=5b7e054

    Model(s): Varies, OPTIMAT BHX


    Availability: Available to order


      Ships within 5-7 days.


    299.00 299.0 USD 299.00

    299.00

    0.0% Off

      This combination does not exist.




      Sku​:
      MP-19-40
      Brand:  Homag

      Have questions about this product?


      Mfr. Part Number: 4-011-04-1204
      Alt. Part Number: 4011041204
      Alt. Reference: R412007185
      Lead Time: See details above

      Optimize your machine with the Homag 4-011-04-1204 Pressure Regulator with Filter, G1-2 AS3-FRE, Aventics #R412007185. Commonly used on OPTIMAT BHX 050/055

      This quality Homag replacement part (4-011-04-1204) is designed for precise fitment and reliable performance.

      Specifications
      PartsFilter pressure regulator
      ReservoirReservoir, polycarbonate, with PA protective guard
      PortG 1/2
      Nominal flow Qn5100 l/min
      Filter porosity5 µm
      Condensate drainFully automatic, open without pressure
      Pressure gaugeWithout pressure gauge
      Min. working pressure1.5 bar
      Max. working pressure16 bar
      Min. ambient temperature-10 °C
      Max. ambient temperature50 °C
      Min. regulation range0.5 bar
      Max. regulation range8 bar
      Lock typeFor padlocks
      Type1-part
      TypeCan be assembled into blocks
      Pressure supplySingle
      Mounting orientationVertical
      Regulator typeDiaphragm-type pressure regulator
      Regulator functionWith relieving air exhaust
      Filter elementExchangeable
      Filter reservoir volume49 cm³
      Max. compressed air class (ISO 8573-1:2010)6 : 7 : -
      MediumCompressed air, Neutral gases
      Weight0.635 kg

      AS3-FRE-G012-GAN-080-PBP-AO-05.00
