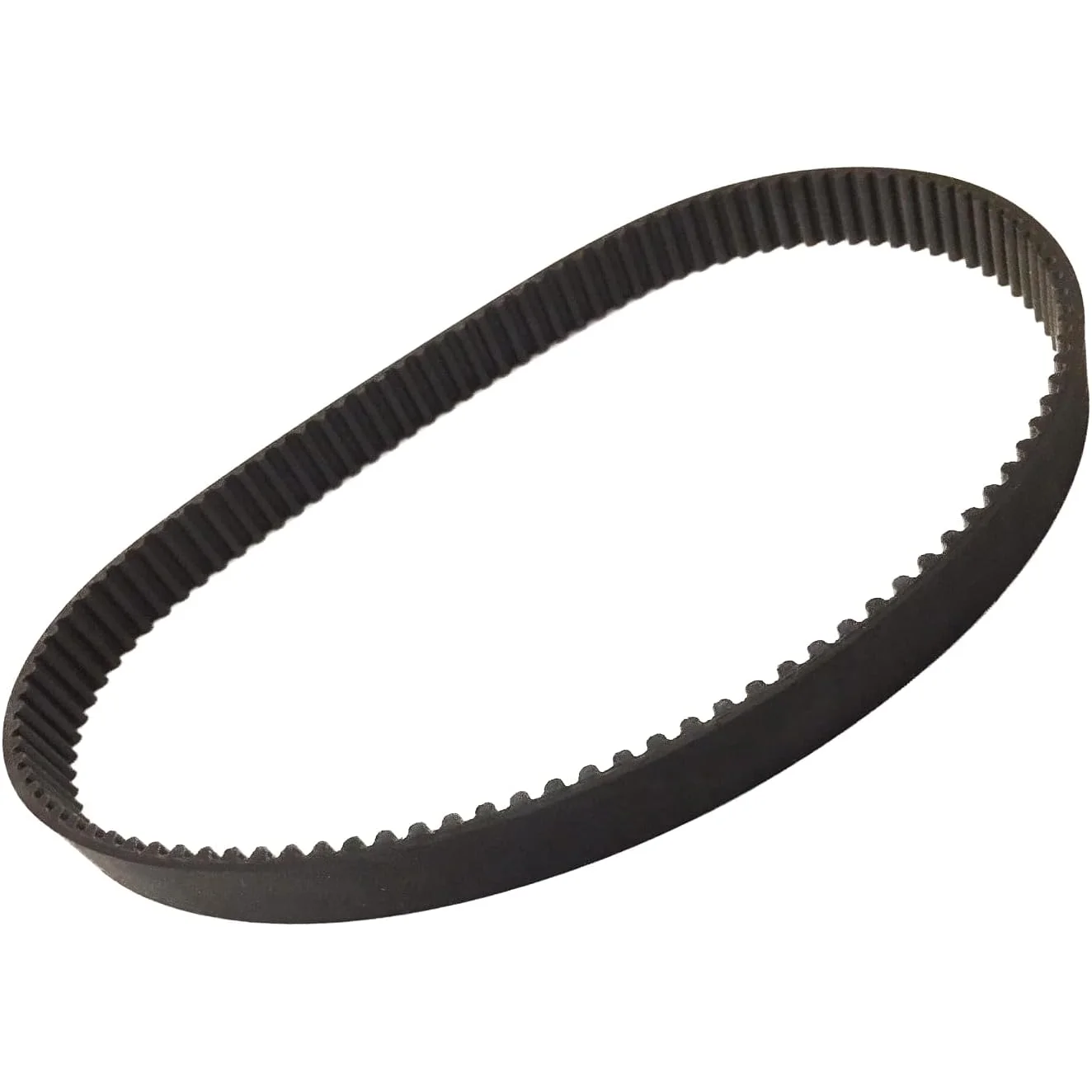

    Jet 10” SuperSaw, Height Adjust Replacement Belt, Model JWSS10LFR, (JT9-JWSS10-686)

    https://www.woodmachineryparts.com/web/image/product.template/2912/image_1920?unique=fb016a0

    Model(s): JWSS10LFR


    Availability: Available

    Factory direct order.


      Ships within 3-5 days.


    126.48 126.48 USD 126.48

    126.48

    0.0% Off

      This combination does not exist.




      Sku​:
      MP-19-40
      Brand:  Jet

      Have questions about this product?


      Mfr. Part Number: JT9-JWSS10-686
      Alt. Part Number: 993101
      Alt. Reference: JWSS10-686
      Lead Time: See details above

      Optimize your JWSS10LFR Table Saw with the Jet JWSS10LFR or JWSS-10LFR Left Tilting 10” SuperSaw Jet Table Saw Replacement Belt. This quality replacement part (JT9-JWSS10-686) is designed for precise fitment and reliable performance. This is the height adjustment belt, not the main drive belt. See illustration #86 of your product manual

      Trust this OEM compatible part, designed to fit your machine. For installation steps and tools, related parts and precautions, refer to your owner's manual and model and the attached guide.


      Replacement Instructions*

      1. Disconnect the machine from the power source..

      2. Unscrew the lock knob and pull the handwheel off the shaft.

      3. Remove five pan head screws that hold the front panel in place.

      4. Remove bolt and pivot assembly up to take the tension off the belt. Take belt off the upper pulley. Remove nut and pull off the assembly.

      5. Remove the screw and washer that holds the shaft in place.

      6. Loosen the two set screws that hold the timing pulley in place.

      7. Pull out the shaft far enough so that you can remove the timing belt.

      8. Replace with a new belt and reassemble.

      9. Make sure timing pulleys are aligned and tighten set screws.

      10. Make sure tension on the timing belt is enough so that the belt does not slip, tighten bolt.


      To ensure optimal performance and longevity of your equipment, users strongly recommend lubricating the Worm Gear at this point. This crucial step can significantly reduce the risk of premature failure caused by excessive resistance on the belt, saving you time and money in the long run.


      *All customer repair instructions are solicited directly from other customers just like you who have purchased and replaced this exact part. Always refer to your original equipment documentation. Instructions are provided for reference only. Use at your own risk.
