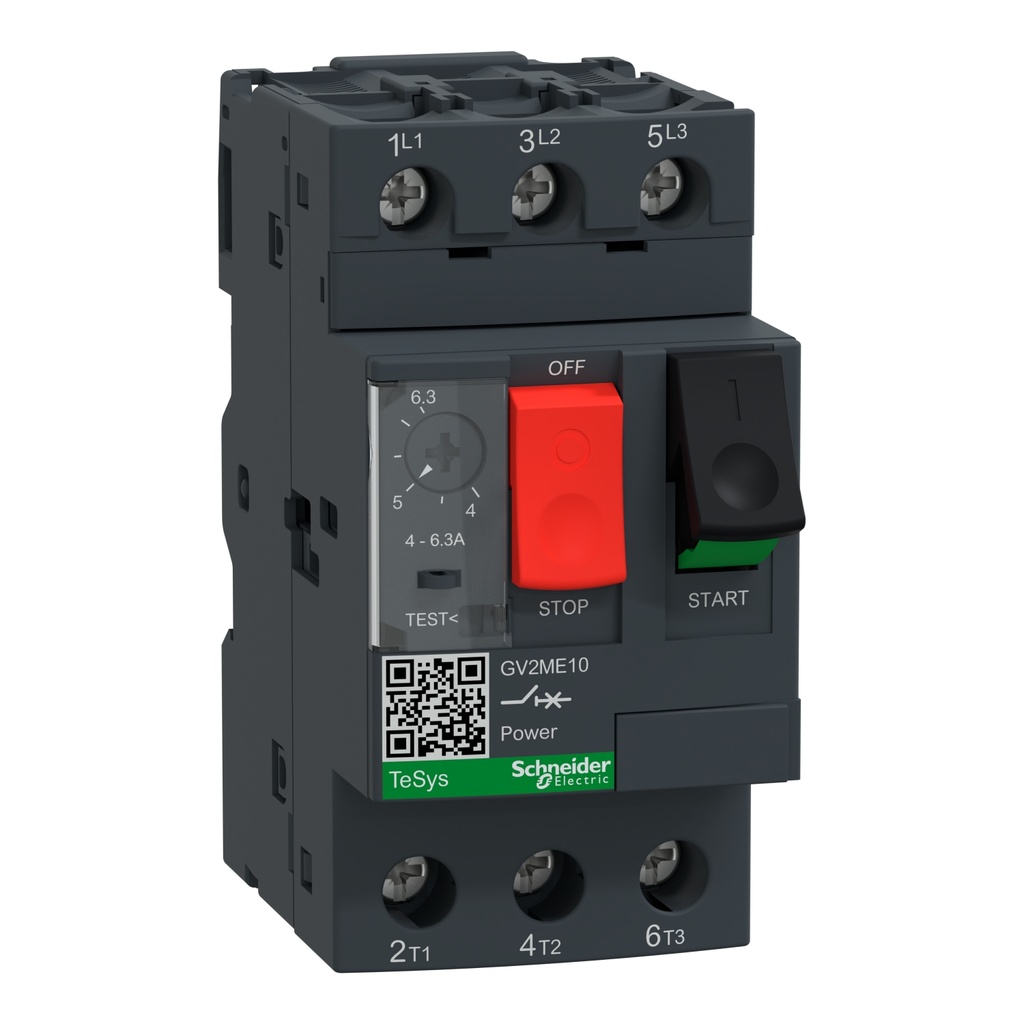

    Laguna Bandit 3/2 Edgebander, Conveyor Starter Contactor

    https://www.woodmachineryparts.com/web/image/product.template/621/image_1920?unique=c4e00e9
    (0 review)

    Laguna Model(s): Bandit 2/3

    Amperage Range: 4-6.3 Amp

    Voltage Range: 120 - 600V

    HP Range: .25hp - 5hp


    Availability: Available to Order

    ​Factory direct order.


      Ships within 1-3 days.


    162.40 162.4 USD 162.40

    162.40

    0.0% Off

    Contact for details

      This combination does not exist.

      Always log in for member discounts!




      Sku​:
      VP-19-11
      Brand:  Laguna

      Have questions about this product?


      Mfr. Part Number: PEB3&2-0135-QM1
      Alt. Part Number: GV2ME10
      Alt. Reference: B018A1RLEI
      Lead Time: See details above

      Conveyor belt contactor for Laguna Bandit 2/3 edgebander.

      May be used as motor starter for other Laguna machines like dust collectors etc. that are 5hp or less.


      Poles description3P
      Network typeAC
      Utilization categoryCategory A IEC 60947-2
      AC-3 IEC 60947-4-1
      AC-3e IEC 60947-4-1
      Network frequency50/60 Hz IEC 60947-2
      Motor power kW2.2 kW 400/415 V AC 50/60 Hz
      3 kW 500 V AC 50/60 Hz
      4 kW 690 V AC 50/60 Hz
      Breaking capacity100 kA Icu 230/240 V AC 50/60 Hz IEC 60947-2
      100 kA Icu 400/415 V AC 50/60 Hz IEC 60947-2
      50 kA Icu 440 V AC 50/60 Hz IEC 60947-2
      50 kA Icu 500 V AC 50/60 Hz IEC 60947-2
      3 kA Icu 690 V AC 50/60 Hz IEC 60947-2
      [Ics] rated service short-circuit breaking capacity100 % 230/240 V AC 50/60 Hz IEC 60947-2
      100 % 400/415 V AC 50/60 Hz IEC 60947-2
      100 % 440 V AC 50/60 Hz IEC 60947-2
      100 % 500 V AC 50/60 Hz IEC 60947-2
      75 % 690 V AC 50/60 Hz IEC 60947-2
      Control TypePush-button
      Line Rated Current6.3 A
      Thermal protection adjustment range4…6.3 A IEC 60947-2
      Magnetic tripping current91 A
      [Ith] conventional free air thermal current6.3 A IEC 60947-2
      [Ue] rated operational voltage690 V AC 50/60 Hz IEC 60947-2
      [Ui] rated insulation voltage690 V AC 50/60 Hz IEC 60947-2
      [Uimp] rated impulse withstand voltage6 kV IEC 60947-2
      Phase failure sensitivityYes IEC 60947-4-1
      Suitability for isolationYes IEC 60947-1
      Power dissipation per pole2.5 W
      Mechanical durability100000 cycles
      Electrical durability100000 cycles AC-3 415 V In
      100000 cycles AC-3e 415 V In
      Rated dutyUninterrupted IEC 60947-4-1
      Connections - terminalsPower circuit screw clamp terminal 2 0.002…0.009 in² (1…6 mm²)solid
      Power circuit screw clamp terminal 2 0.002…0.009 in² (1.5…6 mm²)flexible without cable end
      Power circuit screw clamp terminal 2 0.002…0.006 in² (1…4 mm²)flexible with cable end
      Tightening torque15.05 lbf.in (1.7 N.m) screw clamp terminal
      Fixing mode35 mm symmetrical DIN rail clipped
      Panel screwed with adaptor plate)
      Mounting positionHorizontal
      Vertical
      Width1.8 in (45 mm)
      Height3.5 in (89 mm)
      Depth3.09 in (78.5 mm)
      Product Weight0.57 lb(US) (0.26 kg)
      ColorDark Grey for newer version, White for old stock


      Attention:

      • User submitted data suggests these may fit Laguna, Maksiwa, Cantek, and other brand banders.
      • Always verify dimensions against your machine documentation prior to purchasing.
      • Returns are subject to restocking fee.
