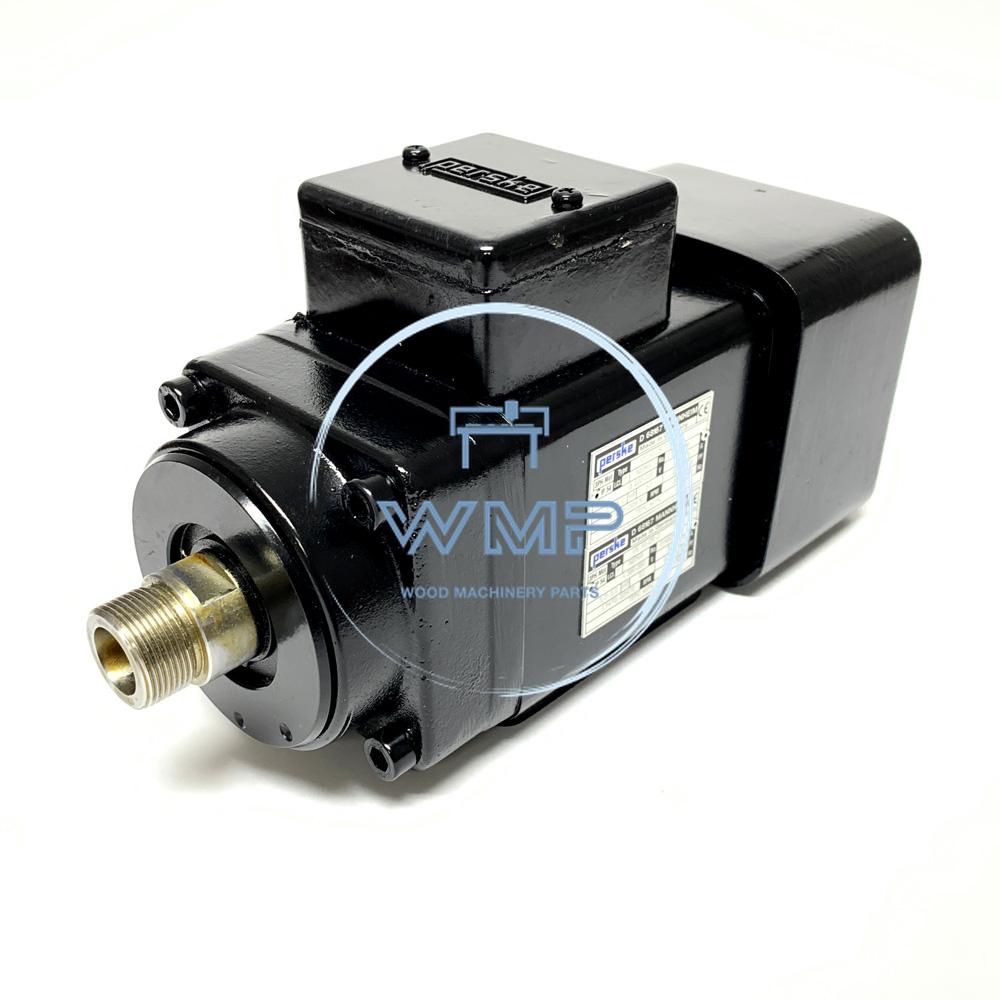

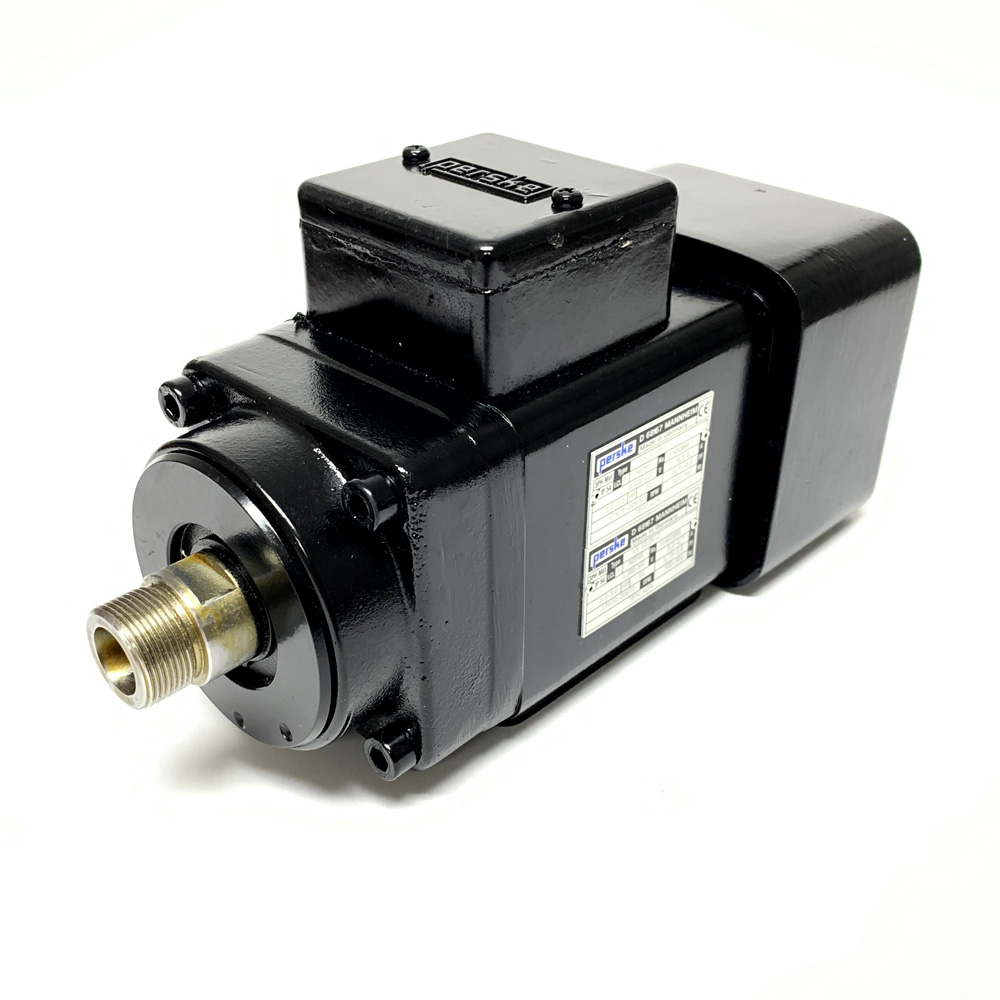

    Perske Router Spindle Assembly, VS 50.09-2 3HP, Single Bearing, Standard RH Thread

    https://www.woodmachineryparts.com/web/image/product.template/524/image_1920?unique=02a8831

    Generic, SCMI Model(s): XXXX, Post 80's Pattern Routers, Overarm Routers*

    Junai Model(s): J11XX, Post 2000's Routers, Overarm Routers*

    Evans Rotork Model(s): 2475, 2480*

    MultiCam Model(s): XX-90-2000's

    Komo Model(s): XX-1990's,


    Availability: Available

    Factory direct order.


     Imported from manufacturer, extended lead time.


    0.00 0.0 USD 0.00

    0.00

    0% Off

      This combination does not exist.




      Sku​:
      MP-19-40

      Have questions about this product?


      Mfr. Part Number: VS50-09-2
      Alt. Part Number: MS 3675, VS50-09-23
      Alt. Reference: MS3675
      Lead Time: See details above

      Perske Router Spindle Assembly, model VS 50.09-2, 3HP, single bearing design with standard right-hand thread. This spindle assembly offers robust and dependable performance for various routing applications. Collet sold separately.

      Commonly used with CNC machines, pattern cutters, template routing machine centers, sink cutout machines, overarm routers, and other woodworking machinery.

      • Model: VS 50.09-2 (often listed as VS50-09-23HP)
      • Power: 3 HP (3.3 hp / 2.5 kW)
      • Speed: Rated 18,000 RPM, Max 21,600 RPM
      • Voltage: Dual Voltage (220V/380V)
      • Frequency: 300 Hz (Rated) / 360 Hz (Max)
      • Tool Interface: Manual Tool Change (MTC), uses SYOZ 20 / EOC 12 / OZ 1833 collets. (Not Included)
      • Bearing: Single bearing
      • Thread: Standard Right-Hand (RH)
      • Cooling: Self-cooled by integrated fan, IP54 protection

      If you are considering this spindle motor for Multi-Cam routers please verify your specifications carefully. Routers had several different horsepower and style spindles over multi generational builds. 3,4,5, and 7hp models were common. These carry a limited return policy and restocking fees will vary.

      (*User-provided data indicates a potential match, but it is not guaranteed. Always verify for your application.)
