Laguna Revo 18|36 Lathe Inverter, 220V, (PLAREVO1836-163-MER)
Model(s): Revo 18|36
Availability: Available to order
Factory direct order.
Ships within 5-7 days.
Mfr. Part Number:
PLAREVO1836-163-MER
Alt. Part Number:
VFD4A8ME21ANNAA
Alt. Reference:
VFD007EL21A
Lead Time:
See details above

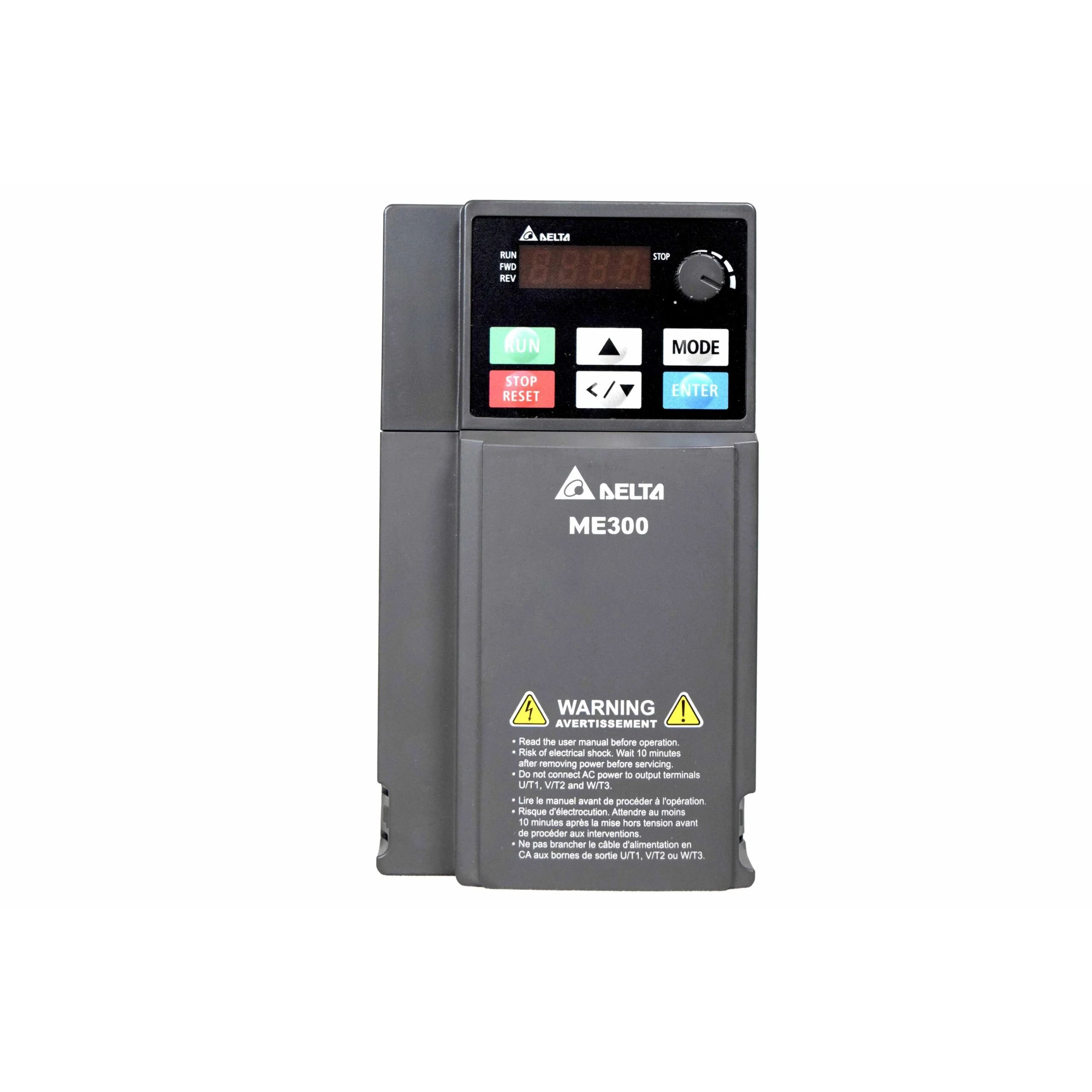

This 220V ME300 Series Inverter is a direct replacement variable frequency drive (VFD) suitable for compatible woodworking machinery, including the Laguna Lathe Revo 18|36.
VFD, 1hp, 0.75kW, 230V, 4.8 Amp (4.8A) HD / 5 Amp (5A) ND, Single Phase, Frame B2, IP20, 599Hz, Standard Model, Version A

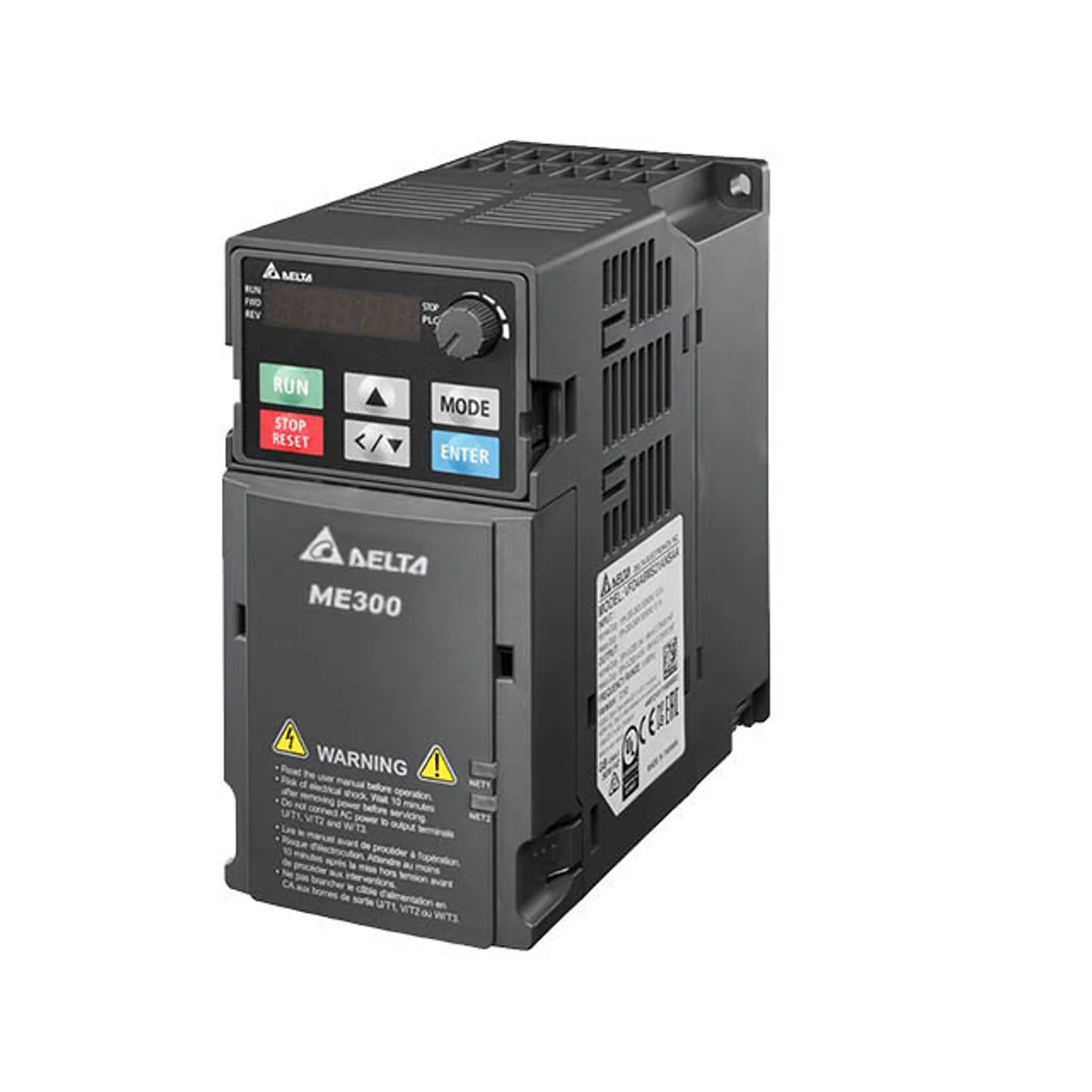

The Delta ME300 Series represents a new generation of compact micro drives featuring advanced vector control, designed with a significant 60% reduction in size compared to previous models.
| Specification | Details |
| Alternate Part Number | Suggested Replacement for VFD007EL21A |
| Warranty | 2 Years |
| Full Catalog | Delta ME300 Series Catalog |
| Additional Documents | Delta ME300 Series User Manual |
| Output | 3 Phase Output |
| Product Data Sheet | Delta ME300 Frame B Drawing |
| Video | N/A |
| Housing/Enclosure | IP20 |
| Drives - Type of Drive | General Purpose |
| Input Voltage | 200-240V, Single Phase |
| Outdoor Rated | No |
| Series | ME300 Series |
| Horsepower | 1 hp |
| Input Phase | Single Phase |
| Weight | 5 lbs |
| Quantity | 1 |
This versatile drive supports both Induction (IM) and Permanent Magnet (PM) motors, enhancing efficiency and operational flexibility. It integrates various essential functions as standard, minimizing the need for additional components and simplifying installation. An optional Safe Torque Off (STO) function is available for enhanced safety. With its user-friendly interface, ultra-compact dimensions, and straightforward installation, the ME300 offers a robust and flexible solution to maintain optimal performance and reliability for your woodworking machinery.
This unit is offered as a suggested replacement for alternate part number VFD007EL21A.
If this replacement part isn't quite what your machine or application requires, we invite you to use our free "FIND MY PART" service.
Submit your request today and we will quickly help locate the parts you need.
We offer replacement parts for all major brands of woodworking machinery. Shop replacement parts for Homag, Striebig, Edgetech, Cantek, Castle, Camwood, Biesse, Weeke, Shop Sabre, HiPoint, Komo, Casadei, Evans, Morbidelli, and more.
