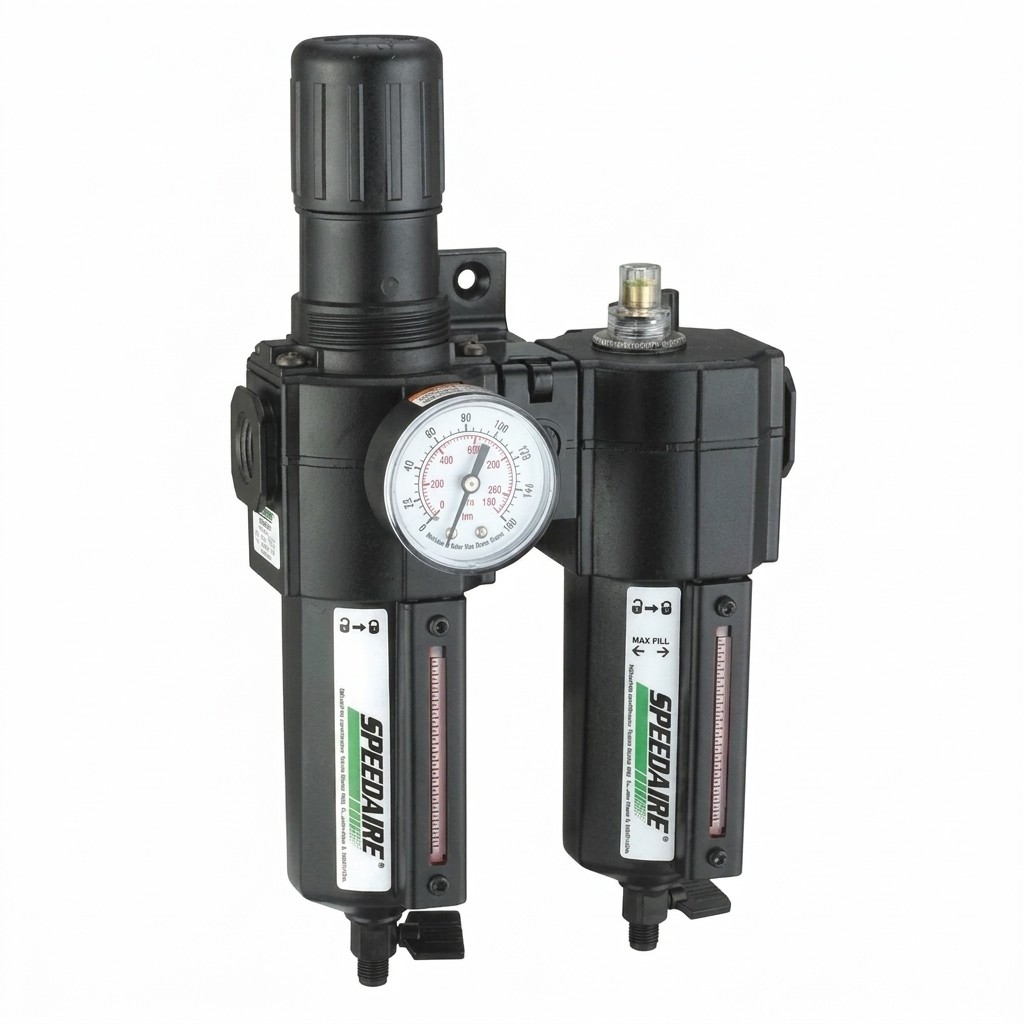

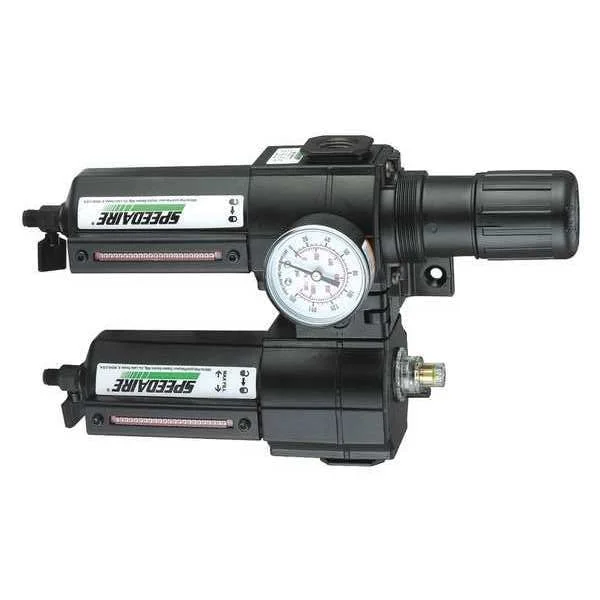

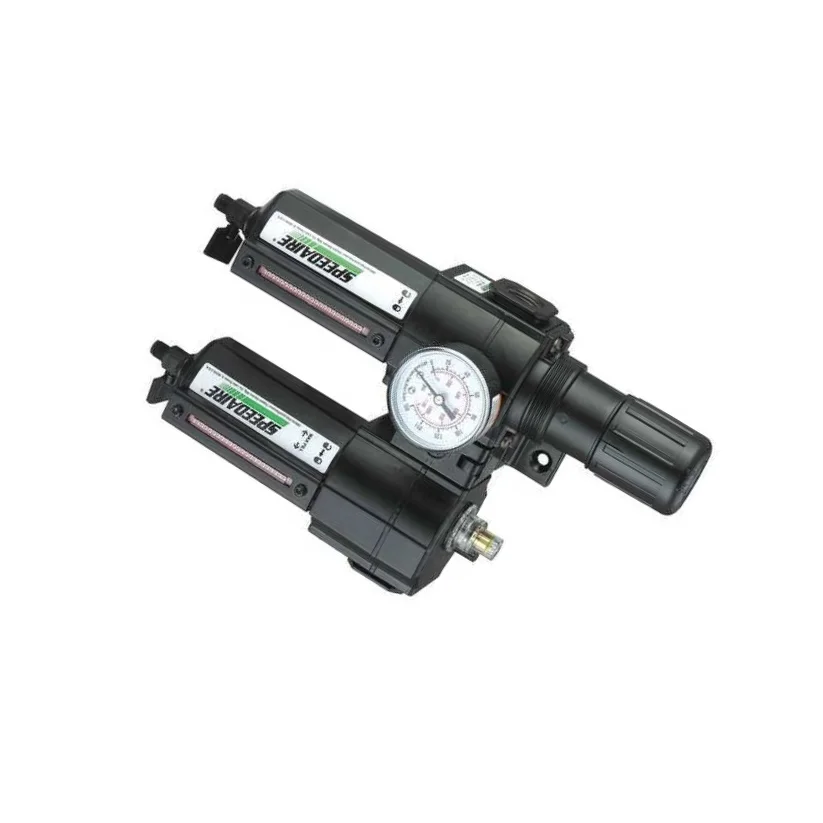

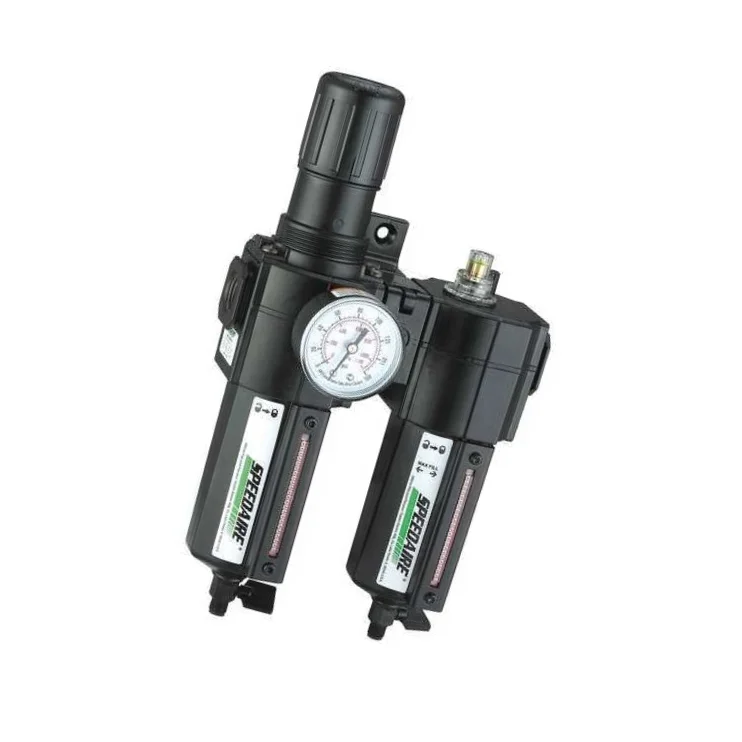

Speedaire Air Filter/Regulator/Lubricator, 3/4 Inch NPT, 186 CFM, 250 PSI, (7D734)
Model(s): Misc.
Availability: Available
Factory direct order.
Ships within 1-3 days.
Mfr. Part Number:
7D734
Alt. Part Number:
7D734
Alt. Reference:
7D734
Lead Time:
See details above
Optimize your machine with the Speedaire FRL, 3/4 In. NPT, 186 Cfm, 250 Psi 7D734. This quality replacement part (7D734) is designed for precise fitment and reliable performance on any woodworking machine where clean air is a must!
Description Filter/Regulator/Lubricator, Air Inlet Size 3/4 in, Air Inlet Type NPT, Maximum Flow Rate 186 cfm, Maximum Operating Pressure 250 psi, Filter Rating 40 micron, Filter Bowl Material Metal, Filter Bowl Capacity 7oz, Lubricator Bowl Capacity 7oz, Drain Type Manual, Overall Width 6 13/16 in, Air Outlet Size 3/4 in, Air Outlet Type NPT, Drain Included Yes, Duty Rating Standard Duty
Includes
Mounting Brackets, Pressure Gauge
Pipe Size
3/4" NPT
Max. Pressure
250 psi
Bowl Size
7.0 oz.
Overall Height
11 15/16 in
Pipe Size - 3/4" NPT
Bowl Size - 7.0 oz.
Overall Height - 11 15/16 in
Connection Size - Air Treatment - 3/4 in NPT
Overall Width - 6 13/16 in
Bowl Size - Air Treatment - 7.0 oz
Air Inlet Size - 3/4 in
Air Outlet Size - 3/4 in
Item
Filter/Regulator/Lubricator
Includes
Mounting Brackets, Pressure Gauge
Max. Pressure
250 psi
Number of Pieces
2
Drain Type
Manual
Filter Rating
40 micron
Bowl Material - Air Treatment
Metal with Sight Glass
Max. Flow
186 cfm
Adjustment Range
5 to 150 psi
Lubricator Type Included
Mist
Adjustment Range - Air Treatment
5 to 150 psi
Max. Flow - Air Treatment
186 cfm
Item - FRL
Filter/Regulator/Lubricator
Bowl Material
Metal with Sight Glass
Max. Temp.
175 Degrees F
Number of Pieces - Air Treatment
2
Max. Incoming Pressure - Air Treatment
250 psi
Filter Rating - Air Treatment
5 micron
Oil Capacity
7 oz
Drain Included
Yes
Air Inlet Type
NPT
Number of Air Outlets
1
For Fluid Type
Air
Lubricator Type
Mist
Maximum Regulated Pressure
150 psi
Lubricator Bowl Capacity
7 oz
Number of Air Inlets
1
Air Outlet Type
NPT
Duty Rating
Standard Duty
Lubricator Bowl Material
Metal
Maximum Flow Rate
186 cfm
Filter Bowl Capacity
7 oz
Maximum Operating Temperature
175 Degrees F
Filter Bowl Material
Metal
For Substance Type
Air
Maximum Operating Pressure
250 psi
Minimum Regulated Pressure
5 psi
Type
2 Piece Modular Combination
