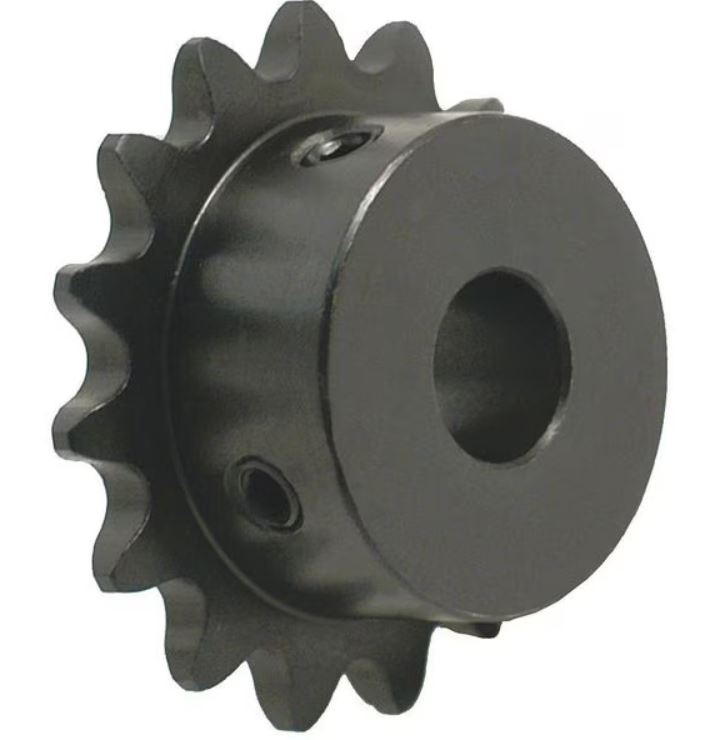

Sprocket, #35 Chain, 16 Teeth, 1/2″ Finished Bore, No Keyway
Model(s): Generic
Detail(s): #35 Chain, 16 Teeth, 1/2″ Bore
Availability: Available
Factory direct order.
Ships in 1-3 days.
Mfr. Part Number:
35BS16Hx1/2
Alt. Part Number:
35BS16
Alt. Reference:
G2680995
Details:
Sprocket, #35 Chain, 16 Teeth, 1/2″ Finished Bore, No Keyway, 2 Set Screws.
Chain Size 35
Bore Dia. - Sprockets 1/2 Inch
Outside Dia. 2 in
Bore Dia. (In.) 1/2
Hub Dia. (In.) 1-15/32
Pitch Dia. 0.375 in
Length through Bore (In.) 3/4
Set Screw Dia. (In.) 10/24
Pitch Dia. (In.) 0.375
Outside Dia. (In.) 2.126
Set Screw Size 3/16 in
Length through Bore 3/4 in
Hub Dia. 1.469 in
Maximum Bore Diameter 1/2 in
Tooth Width 0.168 in
Pitch Diameter 1.922 in
Outside Diameter 2.11 in
Hub Diameter 1 1/2 in
Bore Diameter 1/2 in
Other:
Sprocket Specifications: Bore Diameter 1/2 inch, Compatible with Chain Pitch 3/8 inch, Designed for Single Strand Applications, Hub Configuration: One Side, Material Composition: Steel, Maximum Bore Diameter: 1/2 inch, Total Number of Teeth: 16, Outside Diameter: 2.11 inches, Pitch Diameter: 1.922 inches, Bore Type: Fixed, Chain Specification: Number 35, Surface Finish: Black Oxide, Hub Diameter: 1.5 inches, Hub Projection: 0.582 inches, Includes Set Screws, Keyway: None, Keyway Depth: Not Applicable, Keyway Width: Not Applicable, Length through Bore: 3/4 inch, Total Number of Set Screws: 2
