Helical Cutterhead for Woodtek 20" Thickness Planer, (924083)
Model(s): 118-202, 124070
Availability: Available to order
Factory direct order.
Ships within 14-21 days.
Mfr. Part Number:
924083
Alt. Part Number:
924083
Alt. Reference:
924083
Lead Time:
See details above
Upgrade your woodworking planer with this Helical Cutterhead, engineered as a direct replacement for WOODTEK 924083 20" Thickness Planers. This high-quality replacement component (1040000220001) is designed for a precise fit and reliable operation, significantly reducing chatter and noise during use.
This helical cutter head is specifically engineered for the WOODTEK 924083 20" thickness planers.
Crafted for a precise fit, this helical cutter head enhances the performance of WOODTEK 924083 20" thickness planers. Our tungsten carbide insert knives are produced from 100% raw materials, offering significant advantages over traditional HSS blades, including:

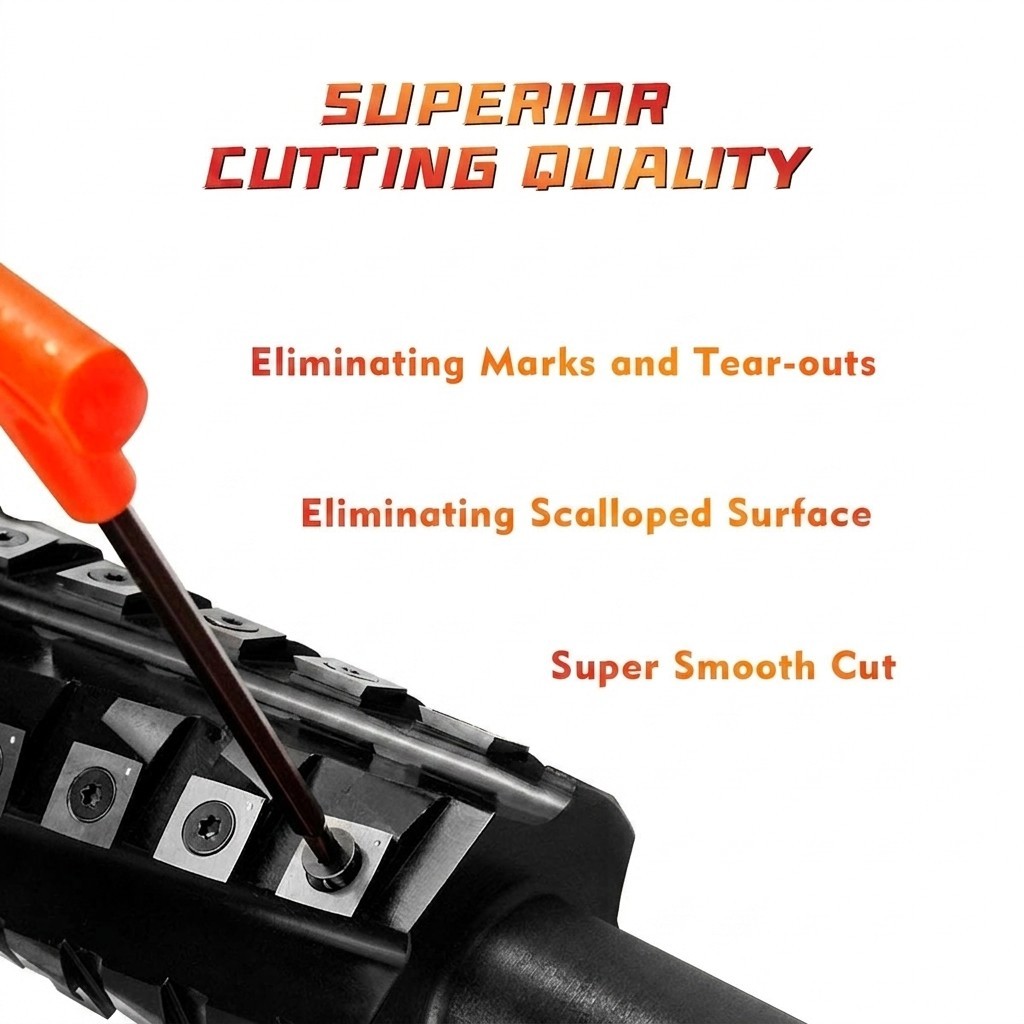

An exceptional wood surface finish for both hardwood and softwood.
The shear cutting action significantly reduces tear-outs.
It generates smaller chips, improving the efficiency of your dust collection system.

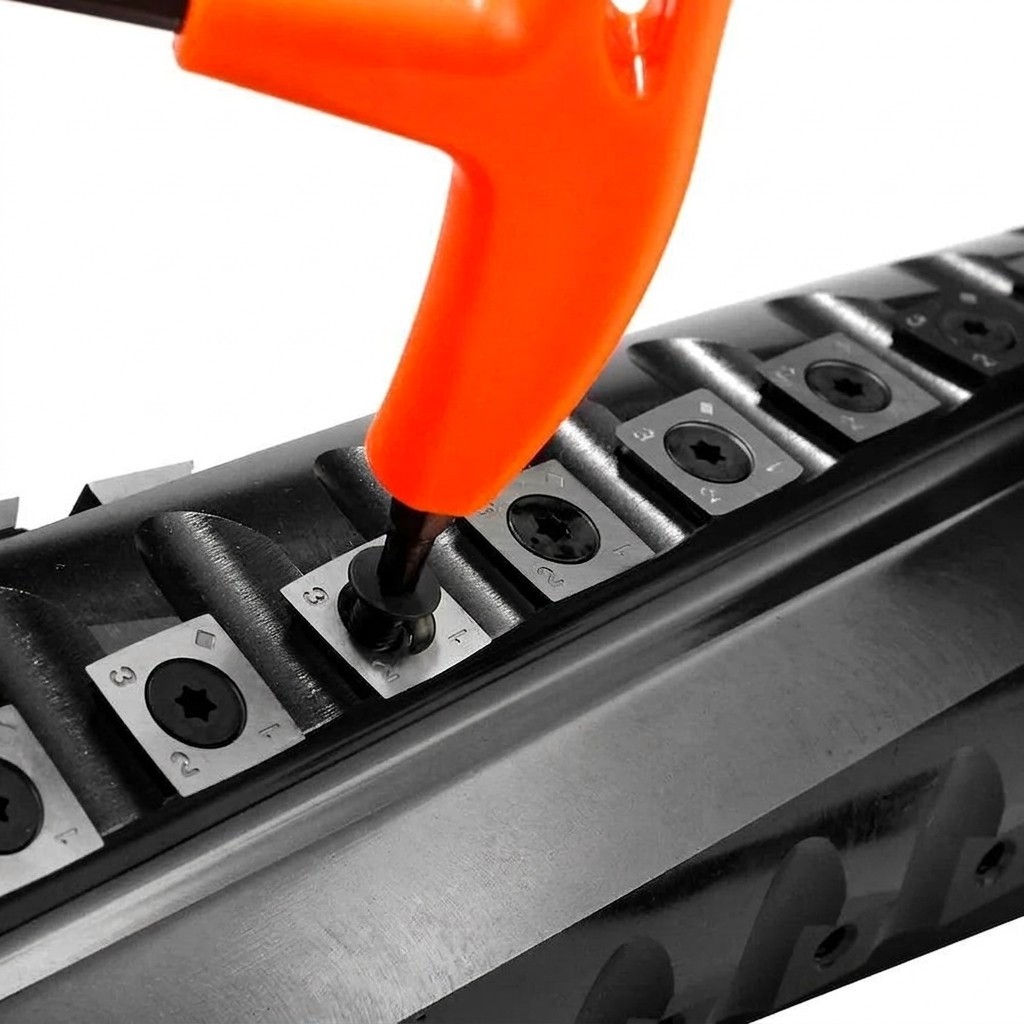

Blade changes are simple and require no adjustments.
No need for re-sharpening the blades anymore.
Experience a lifespan increase of up to 400% with our premium carbide inserts.
Feed rates are faster and more consistent compared to the original cutter head.
Noise levels are dramatically reduced by over 50%.
Included in the package:

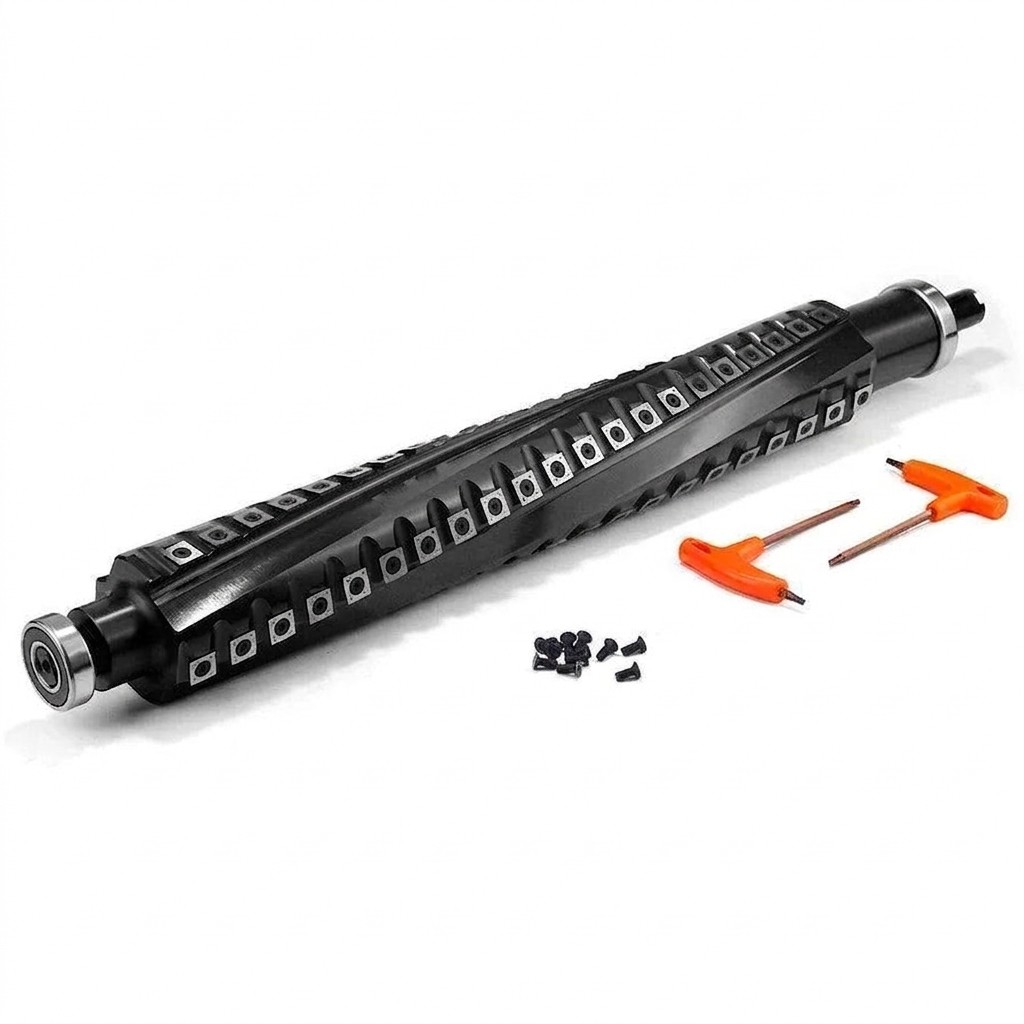

1 x 20 in. helical head
85 x Carbide insert knives
85 x Screws
2 x Screw Drivers
Features:

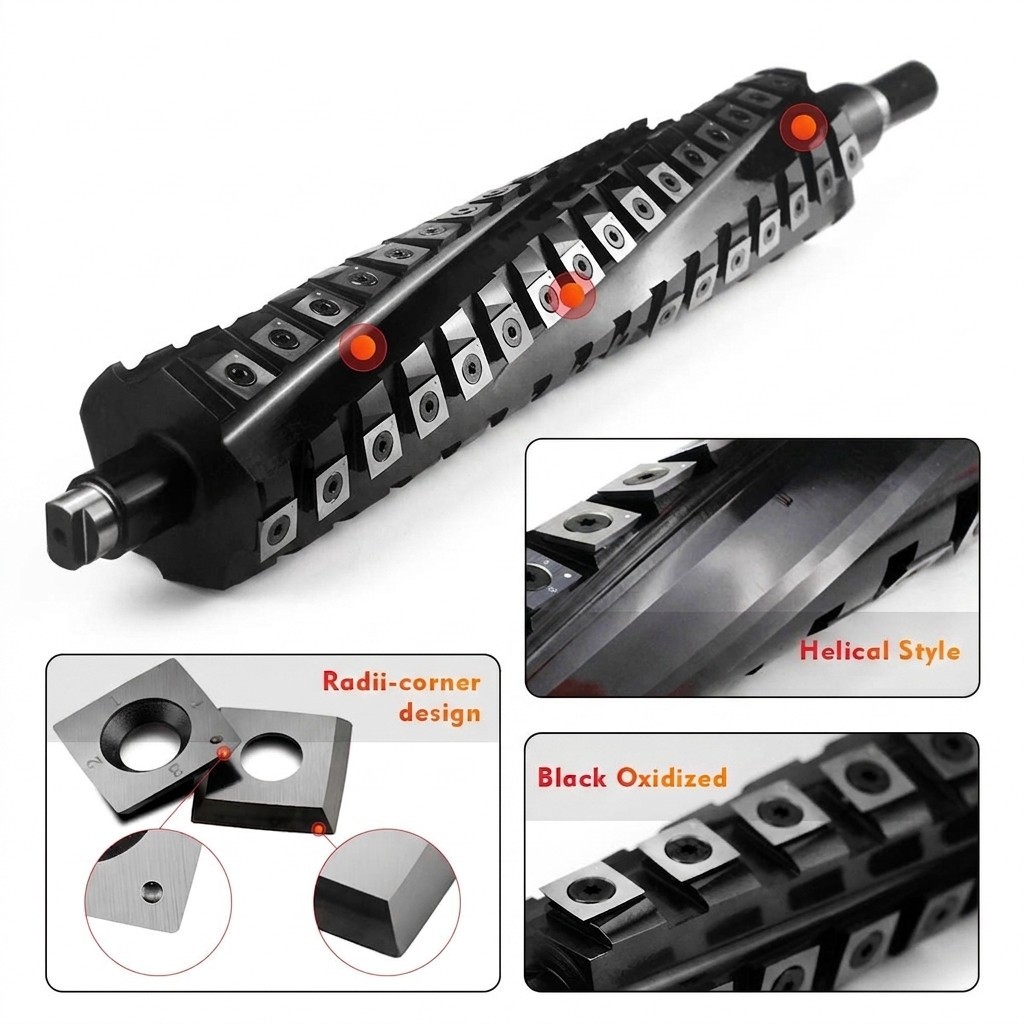

The innovative helical design ensures a true shear cut: Blades are angled for optimal shearing action, resulting in a smooth finish without tear-outs.
Enhanced insert knives: The radius-corner design minimizes lines and scallops while decreasing the risk of blade breakage.

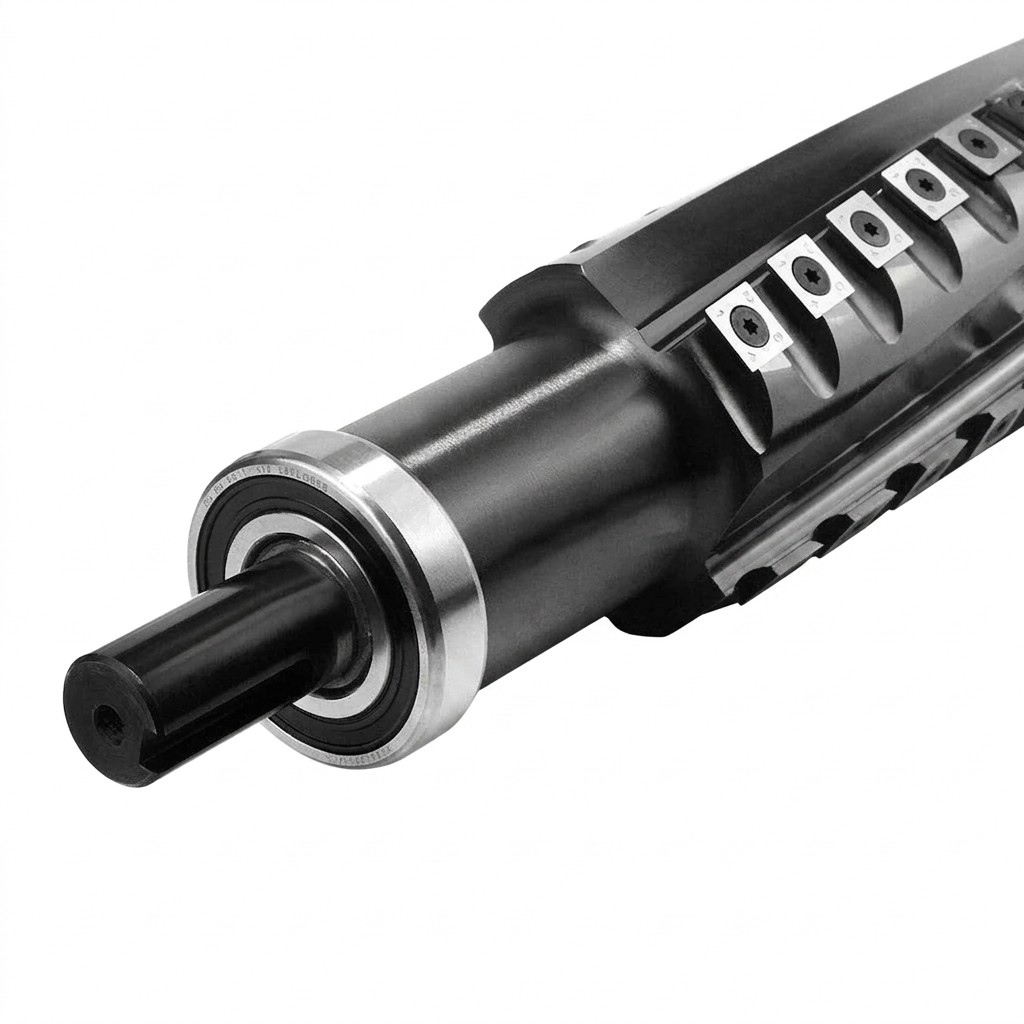

Durability: This helical cutter head is made from high-quality steel with a black oxidized finish for superior durability and rust resistance.
The recommended torque for the blades is 6 Newton meters.
For spare blades, please refer to the 15x15x2.5mm-30°-R150 carbide insert knives.
If you cannot find a cutter head that fits your machine model, we can also offer custom cutter head options.
Specifications:
| Max Wide of Cut | 20 Inch |
| Cutting Wings | 4 |
| Quantity of Knives | 84 |

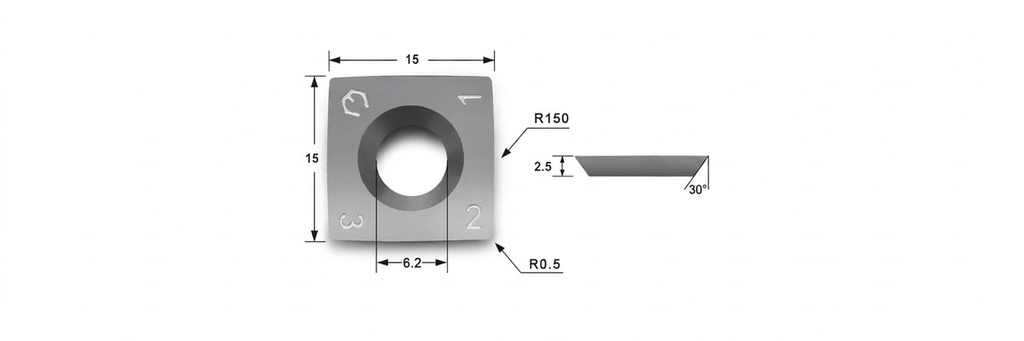

| Insert Knives | 15x15x2.5mm-30°-R150 |
