120/230V Dual Voltage, On|Off Switch, Safety Power Switch for Table Saw, Router Table, Drill Press, Bench Saw, Bandsaw, Grinder, Other, 28 Amps, 1 Phase
Model(s): Various
Availability: Available
Factory direct order.
Ships within 1-3 days.
Lead Time:
See details above
Elevate the safety and control of your woodworking machinery with this robust Single Phase Power Switch. Engineered for precision and reliability, its core specifications include:
Type: Start Stop Push Button
Operation Mode: ON-OFF-ON
Dual Voltage: 120V/230V
Rated current: 2 HP / 28 Amps at 120V
Rated current: 3 HP / 16 Amps at 230V
Approved By: UL, TUV, CSA, CE, ETL standards. This essential single-phase on/off switch delivers uncompromising safety and dependable performance for your entire workshop. Its intelligent, straightforward design facilitates effortless integration, compatible with both deep gang boxes and standard gang boxes when utilizing an extension ring.

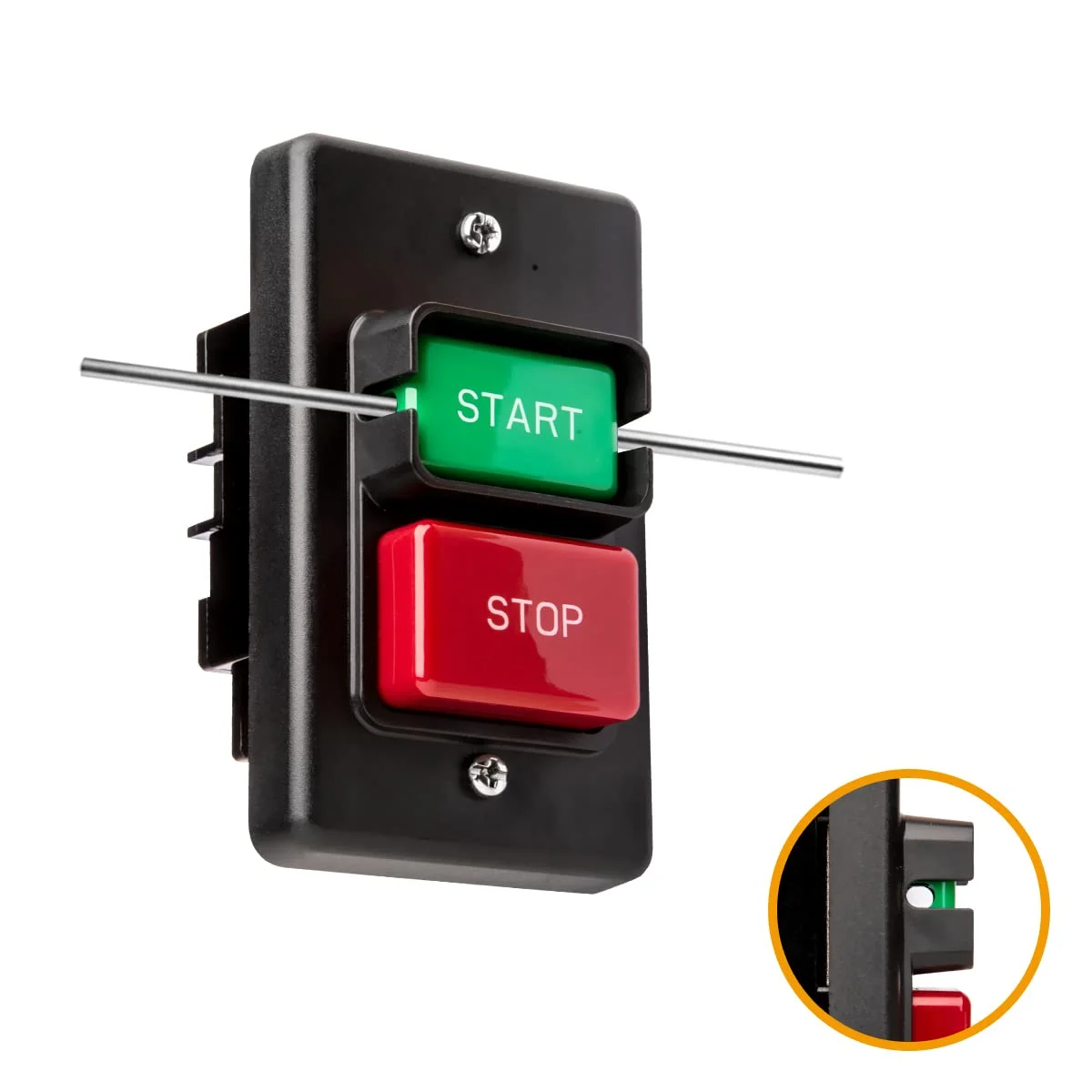

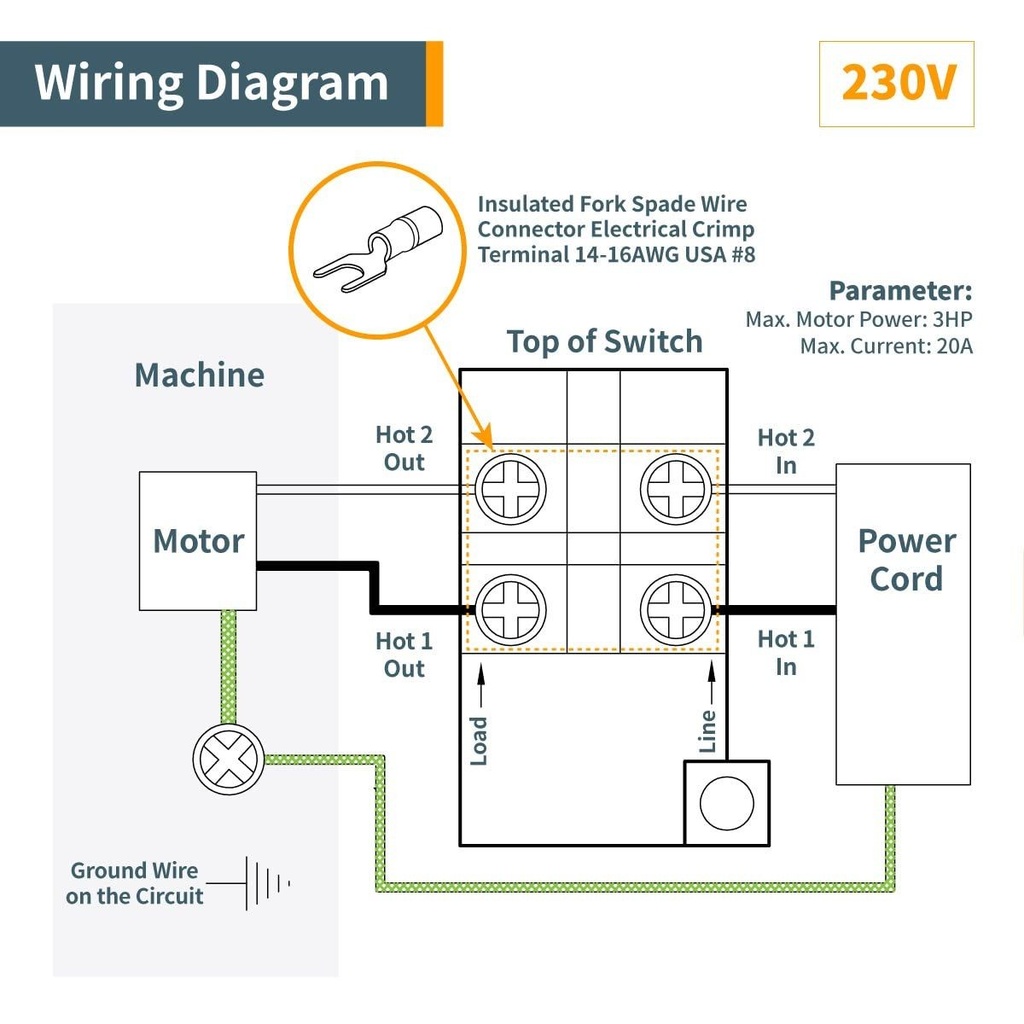

Engineered with 2 throws, this switch ensures comprehensive power cutoff, isolating both hot and neutral lines for 120V or both phases for 230V circuits, significantly enhancing operational safety. Beyond its robust internal mechanisms, it boasts an intuitive, easy-to-install mounting design. Operators will appreciate the distinct, color-coded start/stop push buttons, each featuring an indented or raised profile for clear tactile feedback on switch status. For ultimate peace of mind, the start button incorporates a locking function to prevent any unauthorized activation.
Constructed with heavy-duty electrical components, this switch offers lasting durability. *Please be advised that activation requires a deliberate force range of 40-60 Newtons or 9 to 13.5 pounds-force, ensuring accidental engagement is minimized.* This vital safety component is ideal for a broad array of single-phase woodworking machinery, including:
Table Saws
Drill Presses
Band Saws
Sanders and Jointers
Dust Collection Systems
Further Single Phase Power Switch Specifications:
Type: Start Stop Push Button
Operation Mode: ON-OFF-ON
Dual Voltage: 120/230V
Rated current: 2 HP/35 amps at 120 volts | 3 HP/20 amps at 230 volts
Approved By: UL, TUV, CSA, CE, ETL standards.
