120V/230V Dual Voltage Safety Paddle Switch w/ Switch Box & Hardware. Fits Table Saw, Router Table, Drill Press, Bench Saw, Band Saw
Model(s): Various
Availability: Available
Factory direct order.
Ships within 1-3 days.
Alt. Reference:
72251
Lead Time:
See details above

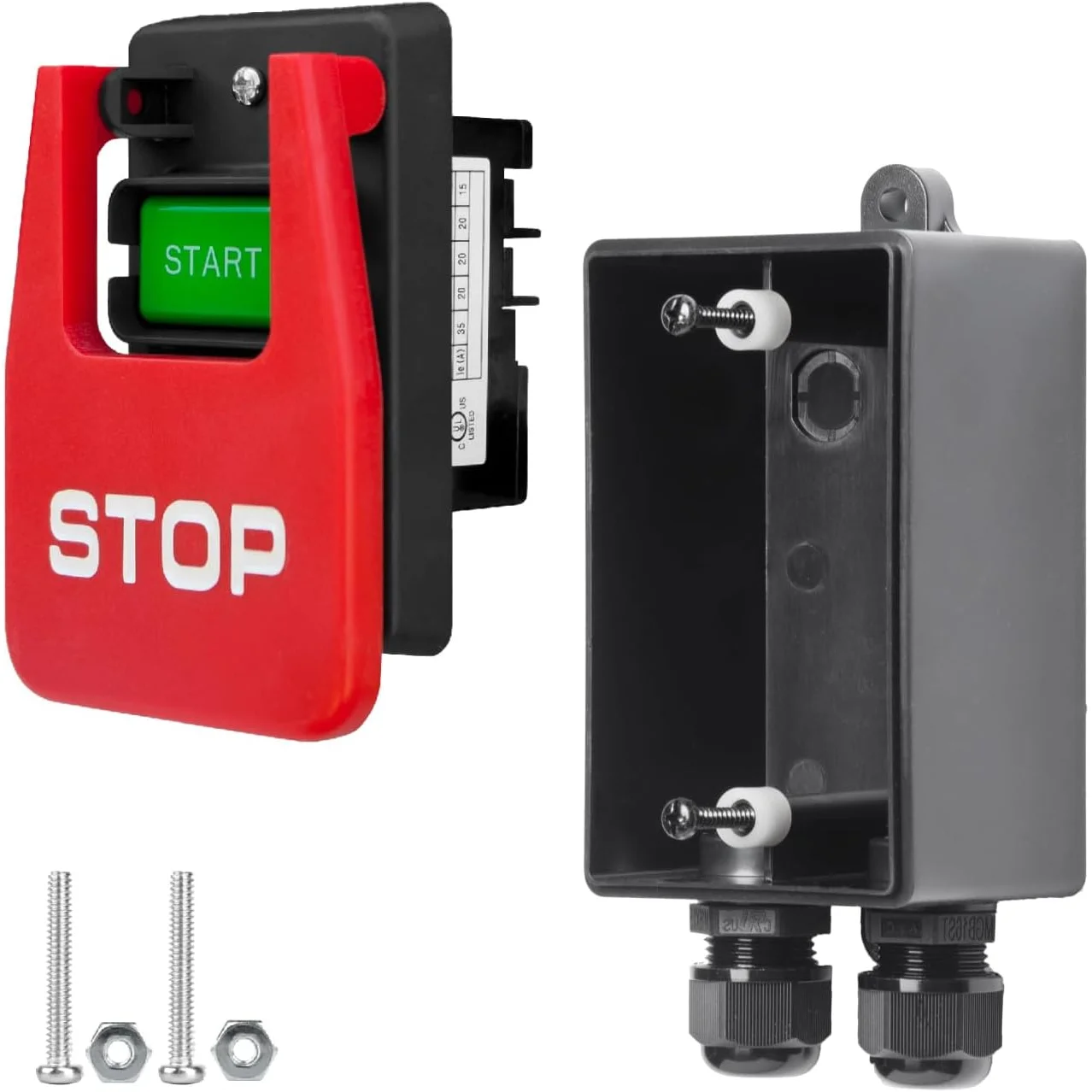

*Includes Box and Cover Screws.
Elevate the safety and control of your woodworking machinery with this premium dual-voltage safety paddle switch, housed in a robust, compact deep switch box. Designed for seamless integration, it provides an essential layer of protection for your workshop.
Paddle Switch Box Features: Enhanced Safety: Featuring an oversized, highly visible red emergency stop paddle, this switch allows for instantaneous shutdown during critical situations. For added security and compliance, the green start button is engineered for lockout/tagout procedures, accepting a cable lock.
Versatile Design: Engineered for broad compatibility, this essential component seamlessly integrates with leading woodworking equipment from brands like Craftsman, Shop Fox, and Grizzly. It is the ideal upgrade for table saws, drill presses, band saws, router tables, and dedicated dust collection units.

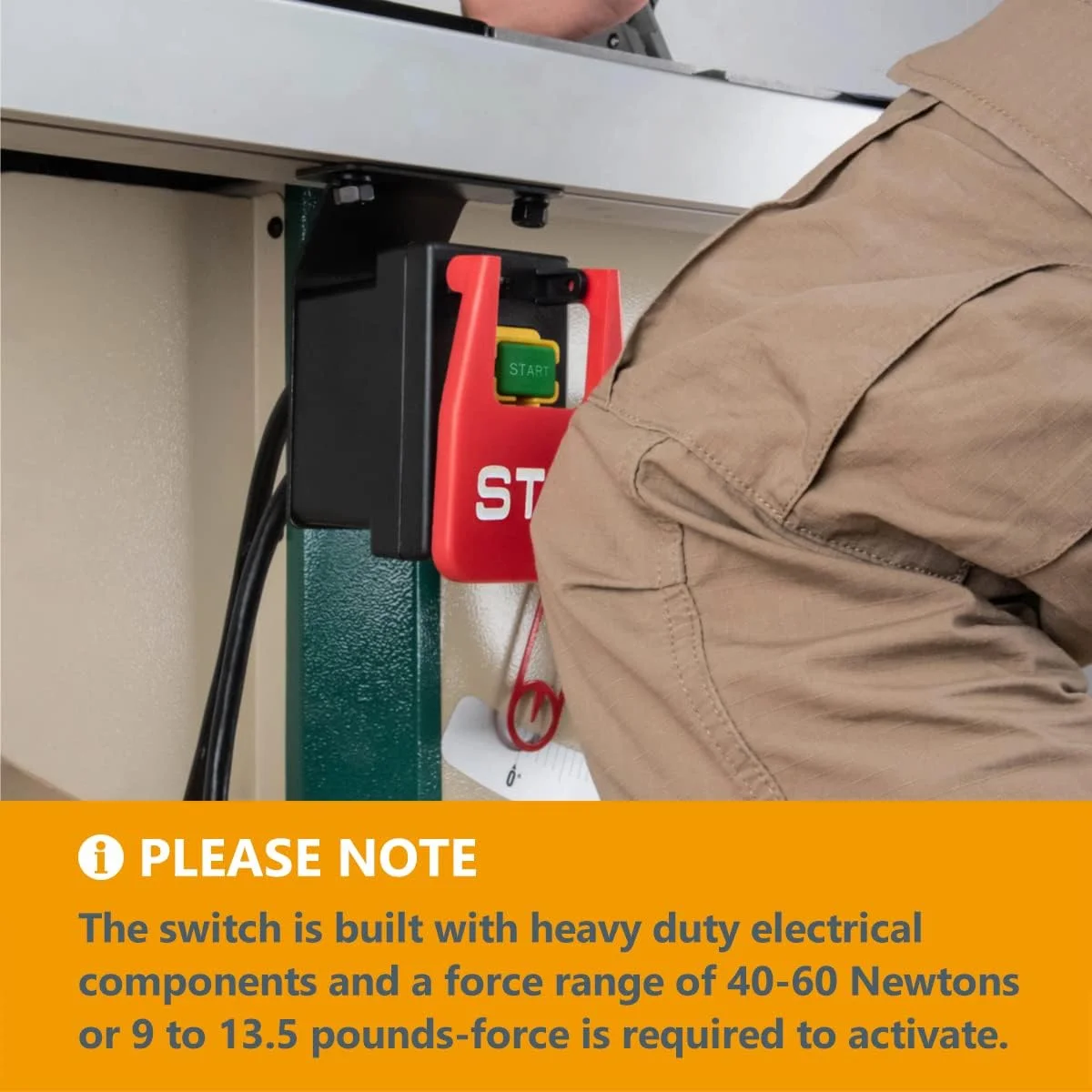

Heavy-Duty Construction: Crafted with a high-impact plastic paddle and industrial-grade electrical components, this switch is built to withstand rigorous workshop demands. It requires a firm, deliberate activation force of 40-60 Newtons (9-13.5 pounds-force), preventing accidental engagement.
Specifications: Phase Type: Single Dual Voltage: 110V/220V Rated Current: 2 HP/35 amps (120V) | 3 HP/20 amps (230V) Certifications: UL, TUV, CSA, CE, ETL standards
Deep Switch Box Features: Durable Build: Constructed from impact-resistant, heavy-duty plastic, this enclosure ensures maximum longevity and protection for internal wiring. It features two threaded cable glands, meticulously designed to safeguard your electrical connections from fraying and external hazards.

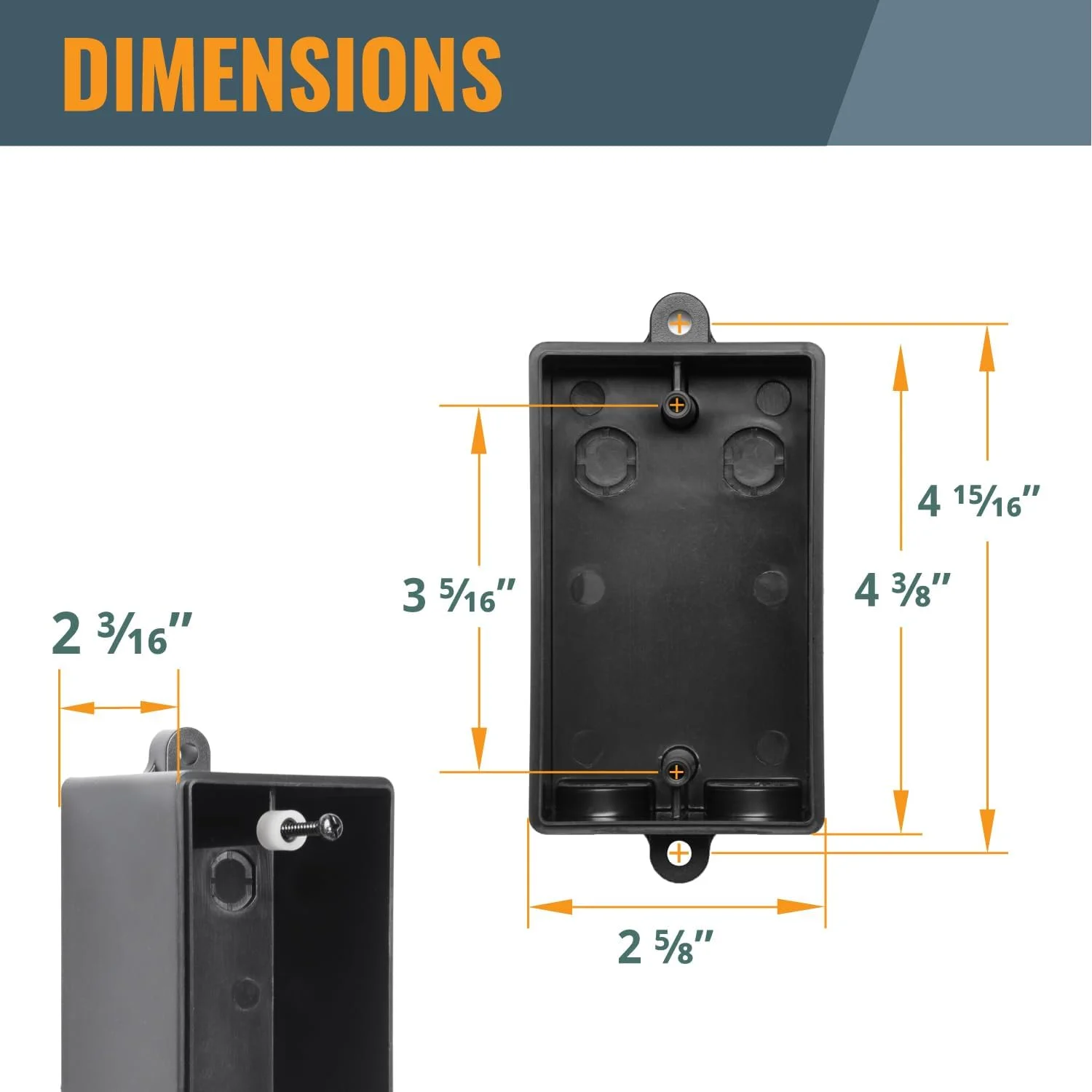

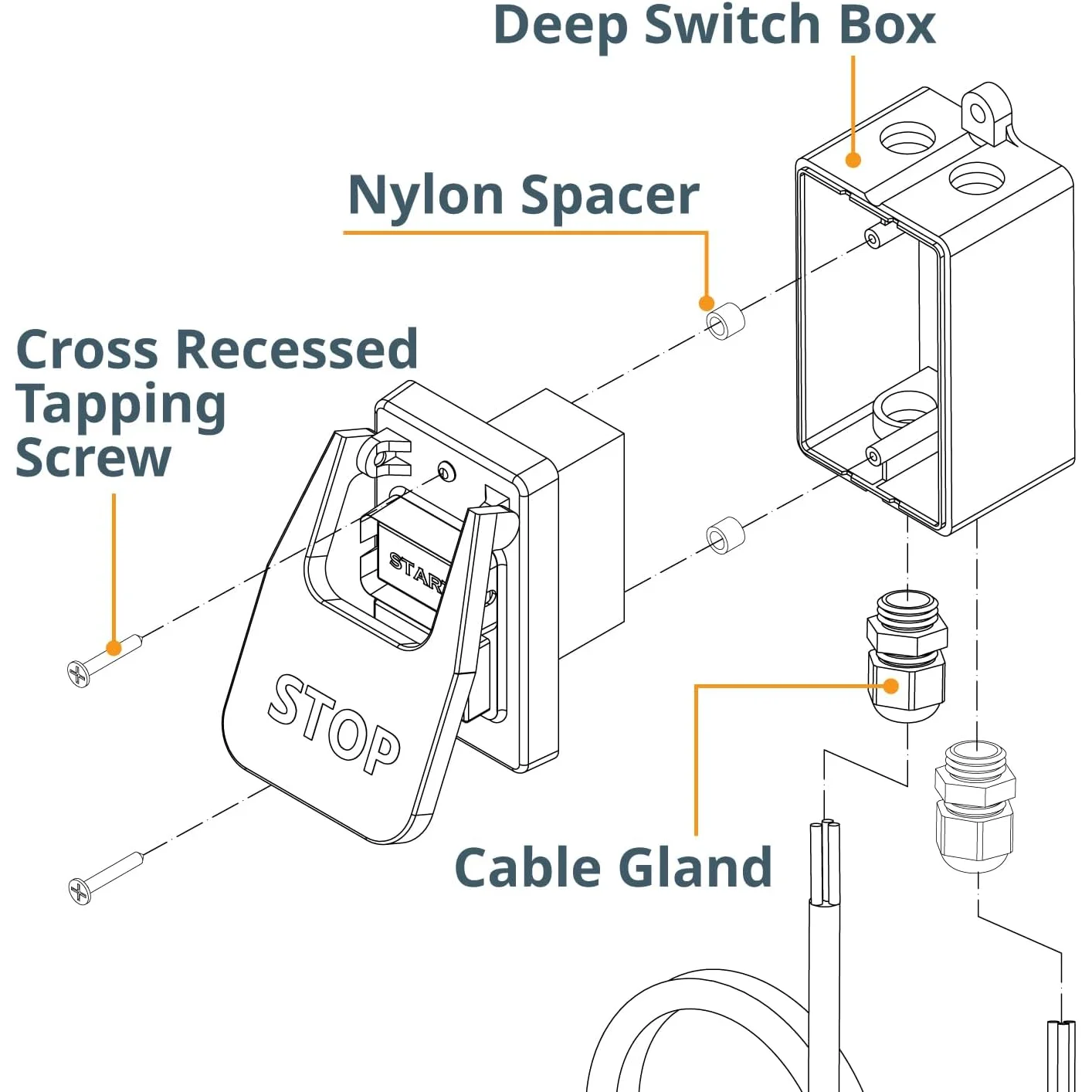

Easy Installation: Facilitating a straightforward setup, the kit includes two cross-recessed tapping screws and robust nylon spacers. Its design allows for versatile mounting options, compatible with either deep gang boxes or standard boxes augmented with an extension ring. Compact Dimensions: 2-5/8" wide, 4-3/8" long, 2-3/16" deep.
Compatibility: This robust deep switch box is specifically engineered for seamless integration with POWERTEC Series Switches 71007, 71008, 71651, 71652, 71054, and 71577 (switches sold separately), offering a perfect fit for your existing setup.
If this replacement part isn't quite what your machine or application requires, we invite you to use our free "FIND MY PART" service.
Submit your request today and we will quickly help locate the parts you need.
We offer replacement parts for all major brands of woodworking machinery. Shop replacement parts for Homag, Striebig, Edgetech, Cantek, Castle, Camwood, Biesse, Weeke, Shop Sabre, HiPoint, Komo, Casadei, Evans, Morbidelli, and more.
